(27.106.AR[01]) - VAR - 390411 - REAR AXLE, DIFFERENTIAL, HOUSING, SUPPORT, 2WD, 4WD

Запчасти Case IH FARMALL 110C (27.106.AR[01]) - VAR - 390411 - REAR AXLE, DIFFERENTIAL, HOUSING, SUPPORT, 2WD, 4WD (27) - REAR AXLE SYSTEM

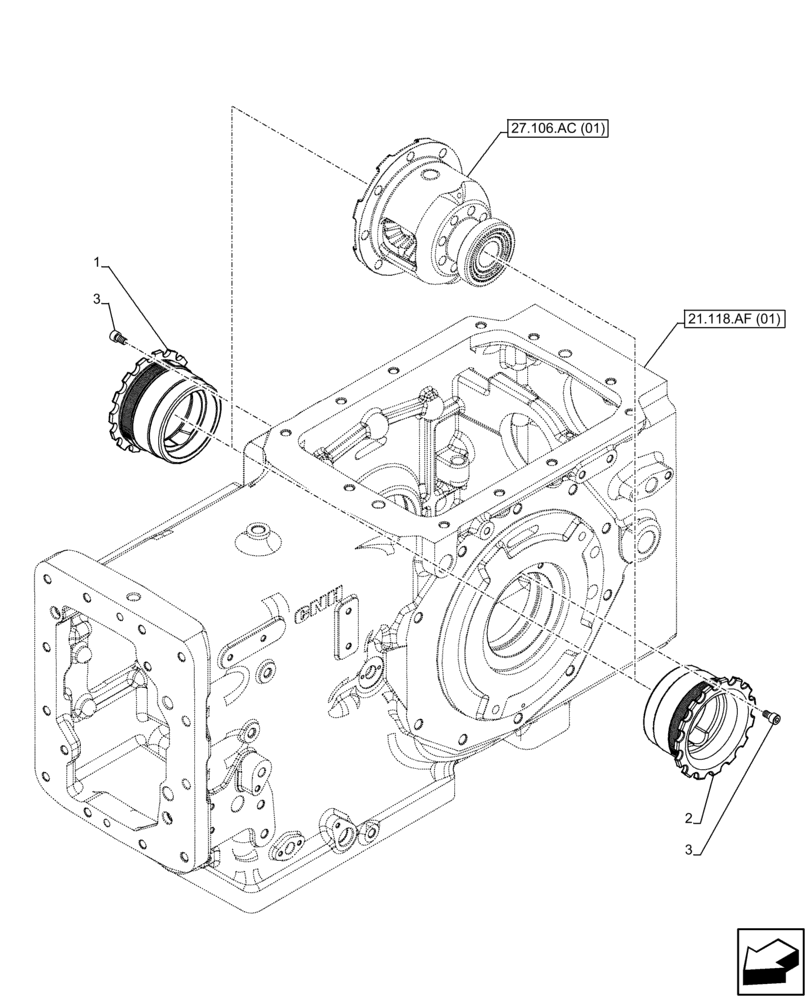

Схема запчастей Case IH FARMALL 110C - (27.106.AR[01]) - VAR - 390411 - REAR AXLE, DIFFERENTIAL, HOUSING, SUPPORT, 2WD, 4WD (27) - REAR AXLE SYSTEM
27.106.ac (01)
2
21.118.af (01)
3
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84271885

HUB

Hub, RH

1шт.

2

84344789

HUB

Hub, LH

1шт.

3

14307024

HEX SOC SCREW,M8 x 1.25 x 14mm, Cl 8.8, Full Thd

2шт.

Выбрано товаров: 3
