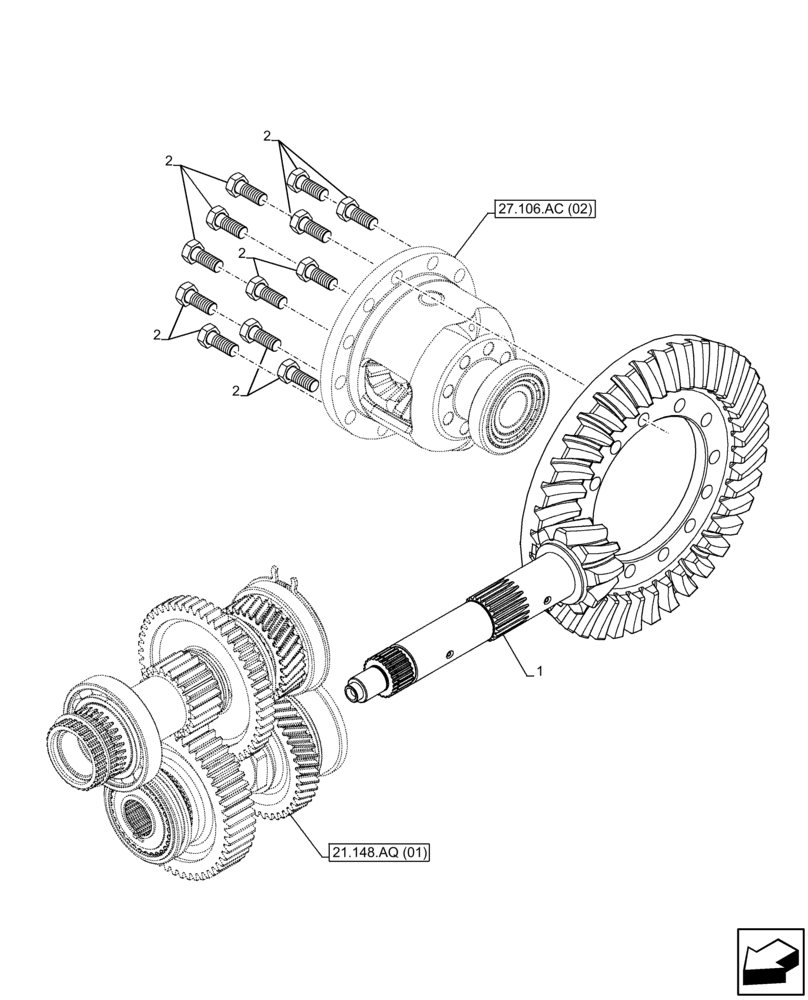

Запчасти Case IH FARMALL 110C (27.106.AA[02]) - VAR - 743507 - REAR AXLE, BEVEL GEAR, BEVEL PINION, W/ HEAVY DUTY AXLE, W/ 34" TIRES (30KM/H) (27) - REAR AXLE SYSTEM
![Схема запчастей Case IH FARMALL 110C - (27.106.AA[02]) - VAR - 743507 - REAR AXLE, BEVEL GEAR, BEVEL PINION, W/ HEAVY DUTY AXLE, W/ 34" TIRES (30KM/H) (27) - REAR AXLE SYSTEM](https://partsell.ru/storage/images/caseih/5339285.png)
21.148.aq (01)
1
2
2
27.106.ac (02)
2
2
2
№
Артикул
Название
Примечание
Количество
1
84344569
BEVEL GEAR,Ratio 9/47
Ratio 9/47 (30Km/H)
1шт.
2
14274634
LOCK BOLT,Hex, M12 x 1.25 x 35mm, Cl 10.9
12шт.
Выбрано товаров: 2
