Запчасти Case IH FARMALL 110C (25.400.AQ[02]) - VAR - 330581 - FRONT AXLE, STEERING KNUCKLE, 2WD, HEAVY DUTY (25) - FRONT AXLE SYSTEM

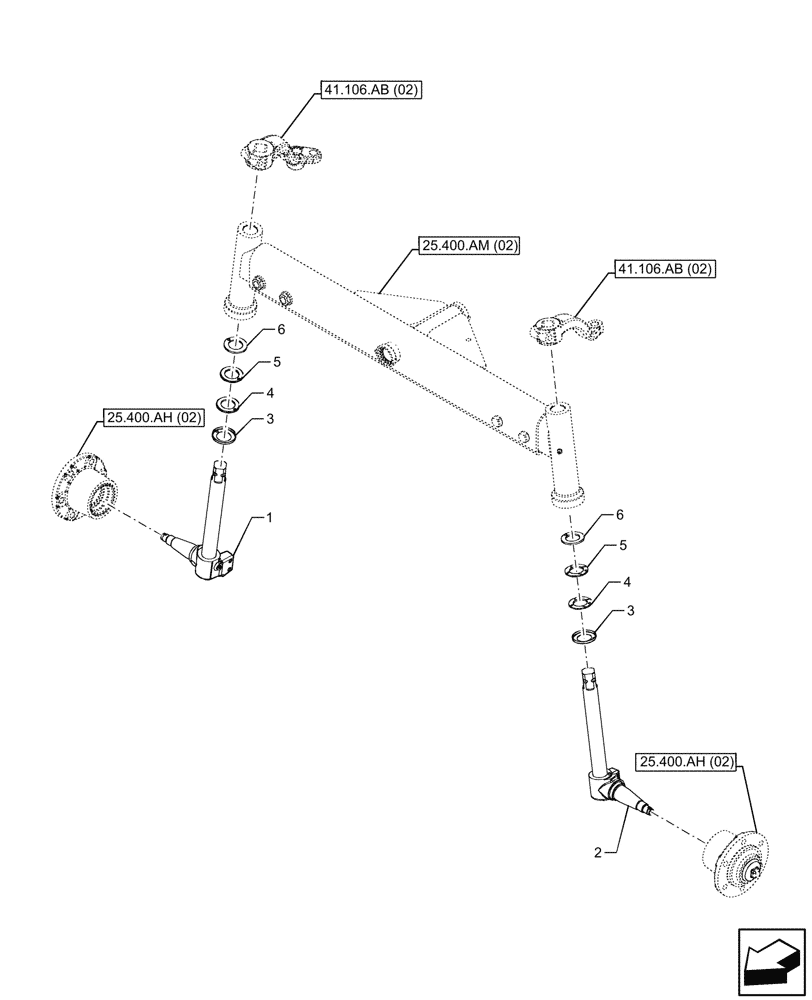

Схема запчастей Case IH FARMALL 110C - (25.400.AQ[02]) - VAR - 330581 - FRONT AXLE, STEERING KNUCKLE, 2WD, HEAVY DUTY (25) - FRONT AXLE SYSTEM
4
6
3
3
5
41.106.ab (02)
6
5
25.400.am (02)
25.400.ah (02)
25.400.ah (02)
1
41.106.ab (02)
4
2

Артикул

Название

Примечание

Количество

1

5166145

STEERING KNUCKLE

RH

1шт.

2

5166147

LH

STEERING KNUCKLE

1шт.

3

566125

CUP

2шт.

4

5144475

THRUST WASHER,38mm ID x 61mm OD x 4mm Thk

2шт.

5

561952

THRUST WASHER

2шт.

6

561953

THRUST WASHER,38.12mm ID x 61mm OD x 4mm Thk

2шт.

Выбрано товаров: 6
