Запчасти Case IH FARMALL 110C (25.102.AC[06]) - VAR - 744581 - FRONT AXLE, DIFFERENTIAL, CARRIER, 4WD, HEAVY DUTY (25) - FRONT AXLE SYSTEM

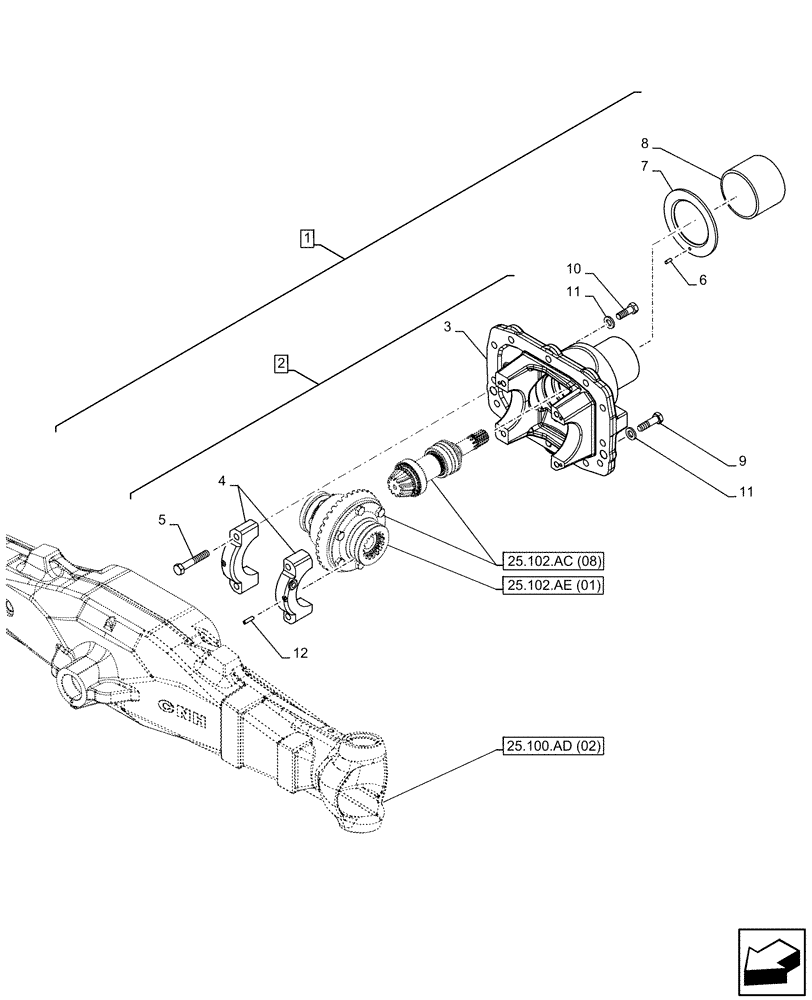

Схема запчастей Case IH FARMALL 110C - (25.102.AC[06]) - VAR - 744581 - FRONT AXLE, DIFFERENTIAL, CARRIER, 4WD, HEAVY DUTY (25) - FRONT AXLE SYSTEM
25.102.ac (08)
6
2
11
3
1
8
7
9
4
11
5
12
10
25.100.ad (02)
25.102.ae (01)

Артикул

Название

Примечание

Количество

1

84358090

COVER

ASSY, Incl 2 - 8

1шт.

2

84360690

SUPPORT

ASSY, Incl 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

Differential Housing, Incl in 2

1шт.

4

NSS

NOT SOLD SEPARAT

Bearing Cap, Incl in 2

1шт.

5

14275331

LOCK BOLT,Hex, M12 x 1.25 x 70mm, Cl 10.9

4шт.

6

4966244

PIN,5mm OD x 15mm L

1шт.

7

5136119

RING,90.3mm ID x 136mm OD x 5mm Thk

1шт.

8

5136120

BUSHING,90mm ID x 99.05mm OD x 72mm L

1шт.

9

87323720

BOLT,Hex, M12 x 1.25 x 45mm, Cl 8.8

8шт.

10

87332797

BOLT,Hex, M12 x 1.25 x 35mm, Cl 8.8

4шт.

11

11198679

BELLEVILLE WASHER,13mm ID x 24mm OD x 0.6mm Thk

12шт.

12

13798231

SET SCREW,Hex Skt, M6 x 25mm, Cl 10.9, Full Thd, Cone Pt

2шт.

Выбрано товаров: 12
