(25.100.AD[02]) - VAR - 744581 - FRONT AXLE, HOUSING, W/ MECHANICAL ENGAGEMENT, 4WD

Запчасти Case IH FARMALL 110C (25.100.AD[02]) - VAR - 744581 - FRONT AXLE, HOUSING, W/ MECHANICAL ENGAGEMENT, 4WD (25) - FRONT AXLE SYSTEM

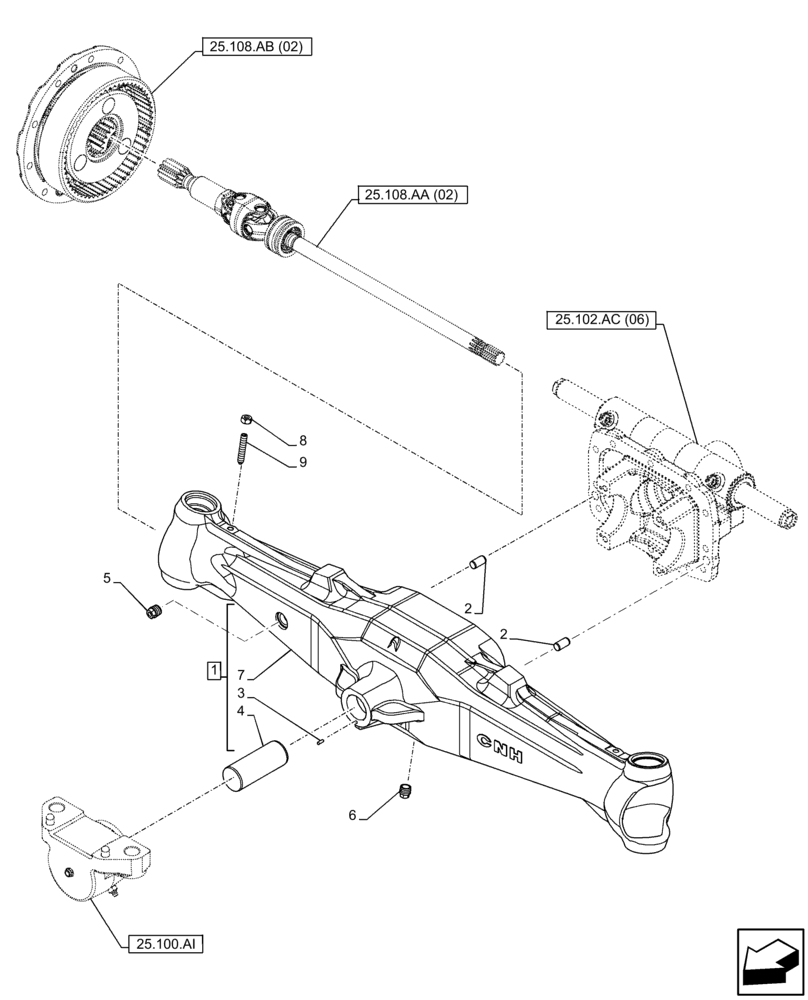

Схема запчастей Case IH FARMALL 110C - (25.100.AD[02]) - VAR - 744581 - FRONT AXLE, HOUSING, W/ MECHANICAL ENGAGEMENT, 4WD (25) - FRONT AXLE SYSTEM
6
25.102.ac (06)
25.108.ab (02)
4
5
8
2
7
9
1
2
25.100.ai
25.108.aa (02)
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84349764

FRONT AXLE

ASSY, Incl 2 - 4, 7

1шт.

2

5174376

DOWEL,M16 x 30

2шт.

3

4966244

PIN,5mm OD x 15mm L

1шт.

4

47123533

PIN,52mm OD x 131mm L

1шт.

5

14324411

MAGNETIC PLUG,M22 x 1.50, Cl 5.8, ZND

1шт.

6

14326211

PLUG,M22 x 1.50, R50, ZND

1шт.

7

NSS

NOT SOLD SEPARAT

Housing, incl in 1

1шт.

8

16101511

NUT,M12 x 1.25, Cl 8

2шт.

9

87316865

SET SCREW,M12 x 1.25 x 53mm

2шт.
