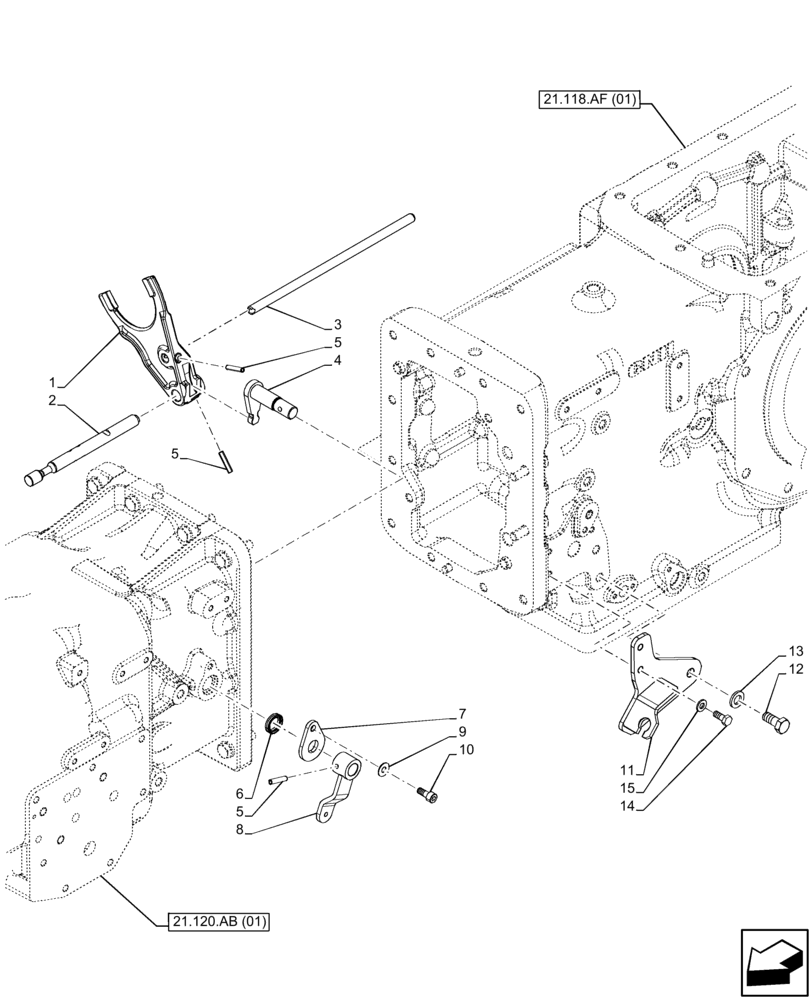

Запчасти Case IH FARMALL 110C (21.160.AK[01]) - VAR - 334176, 744576 - TRANSMISSION, CENTRAL REDUCTION GEAR, CONTROLS (12X12 CREEPER) (21) - TRANSMISSION

1

84347407

FORK

Creeper

1шт.

2

84347630

ROD

1шт.

3

47479427

ROD

1шт.

4

47379377

LEVER

1шт.

5

13910370

ROLL PIN,6mm OD x 30mm L

3шт.

6

84200030

SEALING RING,20mm ID x 28mm OD x 5.5mm Thk

1шт.

7

84233704

PLATE

1шт.

8

84388089

LEVER

1шт.

9

12625221

WASHER,8.15mm ID x 20mm OD x 1mm Thk

8.15 x 20 x 1MM R80 ZND

1шт.

10

864-8020

HEX SOC SCREW,M8 x 20mm, Cl 8.8

1шт.

11

84468918

BRACKET

1шт.

12

15540424

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

13

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

1шт.

14

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

15

83931520

WASHER,8.4mm ID x 17mm OD x 2mm Thk

2шт.
