(21.154.AA[05]) - VAR - 336843 - TRANSMISSION, POWERSHUTTLE, CLUTCH HOUSING, CLUTCH DISC (24X24 ECO SPEED)

Запчасти Case IH FARMALL 110C (21.154.AA[05]) - VAR - 336843 - TRANSMISSION, POWERSHUTTLE, CLUTCH HOUSING, CLUTCH DISC (24X24 ECO SPEED) (21) - TRANSMISSION

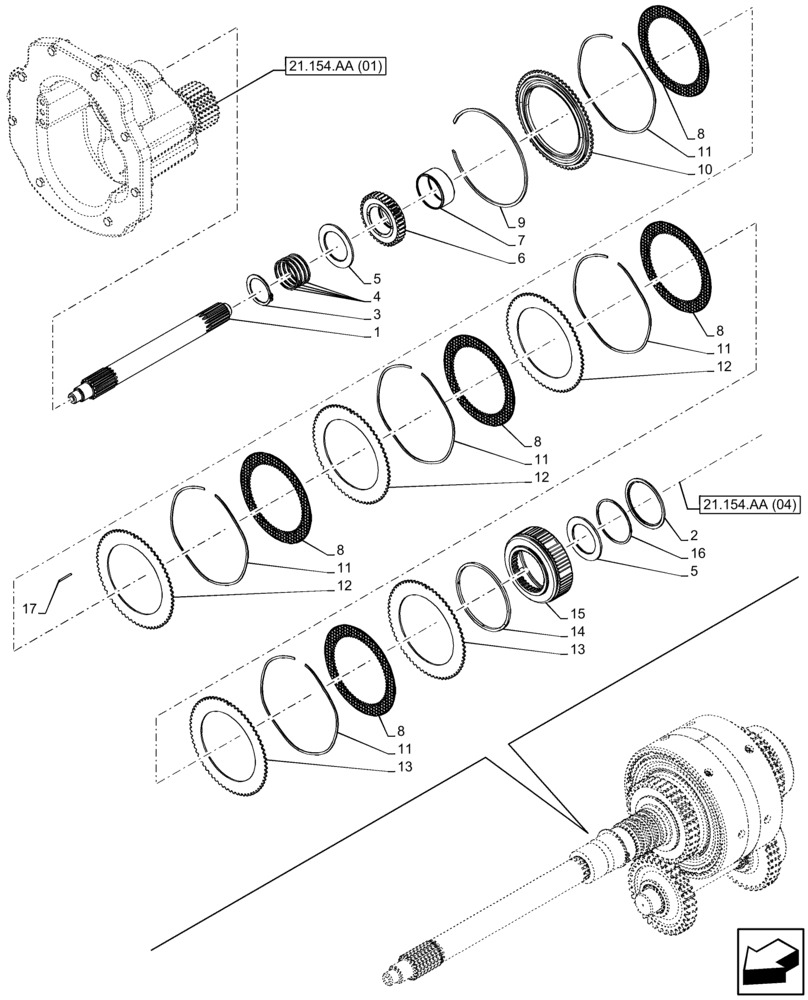

Схема запчастей Case IH FARMALL 110C - (21.154.AA[05]) - VAR - 336843 - TRANSMISSION, POWERSHUTTLE, CLUTCH HOUSING, CLUTCH DISC (24X24 ECO SPEED) (21) - TRANSMISSION
11
15
16
8
3
14
21.154.aa (04)
5
12
21.154.aa (01)
12
13
9
4
6
11
7
11
8
17
8
5
8
11
2
1
12
10
8
13
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47493615

SHAFT

1шт.

2

47137711

CIRCLIP,72.2mm ID x 85mm OD x 2.8mm Thk

1шт.

3

370007

SNAP RING,M45, Ext

45mm Ext

1шт.

4

5175983

SEALING RING,46mm ID

4шт.

5

84327522

SPACER,50mm ID x 74mm OD x 3mm L

2шт.

6

84330701

GEAR,35T

Reverse 35T

1шт.

7

5194535

NEEDLE BEARING CAGE,55mm ID x 60mm OD x 27mm L

1шт.

8

87310594

CLUTCH PLATE,114.72mm ID x 154.4mm OD x 2.3mm Thk

5шт.

9

47438491

SNAP RING,M165.6, Int

1шт.

10

87325224

PLATE,Z66, 117mm ID

1шт.

11

81878948

SPRING,162.58mm ID

5шт.

12

87325222

CLUTCH DISC,119.60mm ID x 167.50mm OD x 2.20mm Thk

3шт.

13

87325221

CLUTCH DISC,119.60mm ID x 167.50mm OD x 2mm Thk

2шт.

14

81865152

SEAL,107.72mm ID x 116.32mm OD x 3.8mm Thk

1шт.

15

47371383

HUB

1шт.

16

47137712

SNAP RING,70.2mm ID x 76mm OD x 1.5mm Thk

1шт.

17

87683301

PIN,2.5mm x 26mm

1шт.
