Запчасти Case IH FARMALL 110C (21.154.AA[04]) - VAR - 336843 - TRANSMISSION, POWERSHUTTLE, CLUTCH HOUSING, CLUTCH DISC (24X24 ECO SPEED) (21) - TRANSMISSION

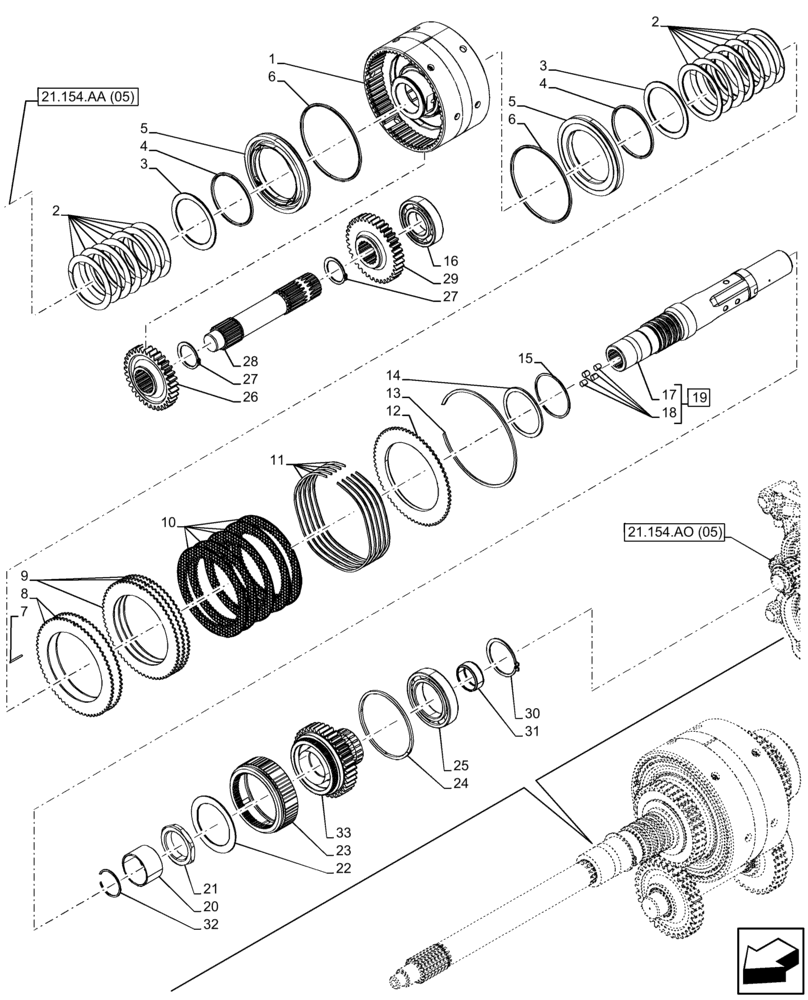

Схема запчастей Case IH FARMALL 110C - (21.154.AA[04]) - VAR - 336843 - TRANSMISSION, POWERSHUTTLE, CLUTCH HOUSING, CLUTCH DISC (24X24 ECO SPEED) (21) - TRANSMISSION
21
27
29
15
27
18
11
12
5
22
33
16
3
28
5
21.154.aa (05)
26
17
21.154.ao (05)
10
2
13
32
7
9
3
31
6
24
23
20
1
6
14
4
25
2
19
4
8
30

Артикул

Название

Примечание

Количество

1

47372920

CLUTCH HOUSING

1шт.

2

5194761

SPRING,73mm ID x 93mm OD x 3.7mm Thk

14шт.

3

47137663

PISTON RING,77mm ID x 97mm OD x 2.5mm Thk

2шт.

4

5162398

SEALING RING,82.55mm ID x 90mm OD x 3.2mm Thk

2шт.

5

47372916

PISTON,90mm ID x 132mm OD x 16mm L

2шт.

6

5137563

GASKET,124.55mm ID x 132mm OD x 3.2mm Thk

2шт.

7

87683301

PIN,2.5mm x 26mm

1шт.

8

87325221

CLUTCH DISC,119.60mm ID x 167.50mm OD x 2mm Thk

2шт.

9

87325222

CLUTCH DISC,119.60mm ID x 167.50mm OD x 2.20mm Thk

3шт.

10

87310594

CLUTCH PLATE,114.72mm ID x 154.4mm OD x 2.3mm Thk

5шт.

11

81878948

SPRING,162.58mm ID

5шт.

12

87325224

PLATE,Z66, 117mm ID

1шт.

13

47438491

SNAP RING,M165.6, Int

1шт.

14

47137711

CIRCLIP,72.2mm ID x 85mm OD x 2.8mm Thk

1шт.

15

47137712

SNAP RING,70.2mm ID x 76mm OD x 1.5mm Thk

1шт.

16

20915780

BALL BEARING,40mm ID x 80mm OD x 18mm W

D40 x 80 x 18mm

1шт.

17

NSS

NOT SOLD SEPARAT

Shaft, Incl in 19

1шт.

18

14536490

PLUG,8.00mm Dia x 15.70mm L

M8

4шт.

19

47377499

SHAFT

ASSY, Incl 17, 18

1шт.

20

84330702

RING

1шт.

21

84327528

RING NUT,M50 x 1.5

1шт.

22

47372918

SPACER,72.4mm ID x 97mm OD x 2mm L

1шт.

23

47371375

HUB,62T Internal / 63T External

1шт.

24

81865152

SEAL,107.72mm ID x 116.32mm OD x 3.8mm Thk

1шт.

25

87308924

BALL BEARING,60mm ID x 95mm OD x 18mm W

60 x 90 x 18mm

1шт.

26

84314534

GEAR,33T

Driven, Reverse 33T

1шт.

27

370006

SNAP RING,M40, Ext

40mm Ext

2шт.

28

47371386

DRIVE SHAFT

Input

1шт.

29

84339702

GEAR,36T

1шт.

30

11069871

CIRCLIP

D60

1шт.

31

84330698

BEARING,Needle, 40mm ID x 42mm OD x 16.8mm W

2шт.

32

5139494

SNAP RING,45mm D x 1.5mm Thk, Ext

3шт.

33

84330699

GEAR,38T

Forward 38T

1шт.

Выбрано товаров: 33
