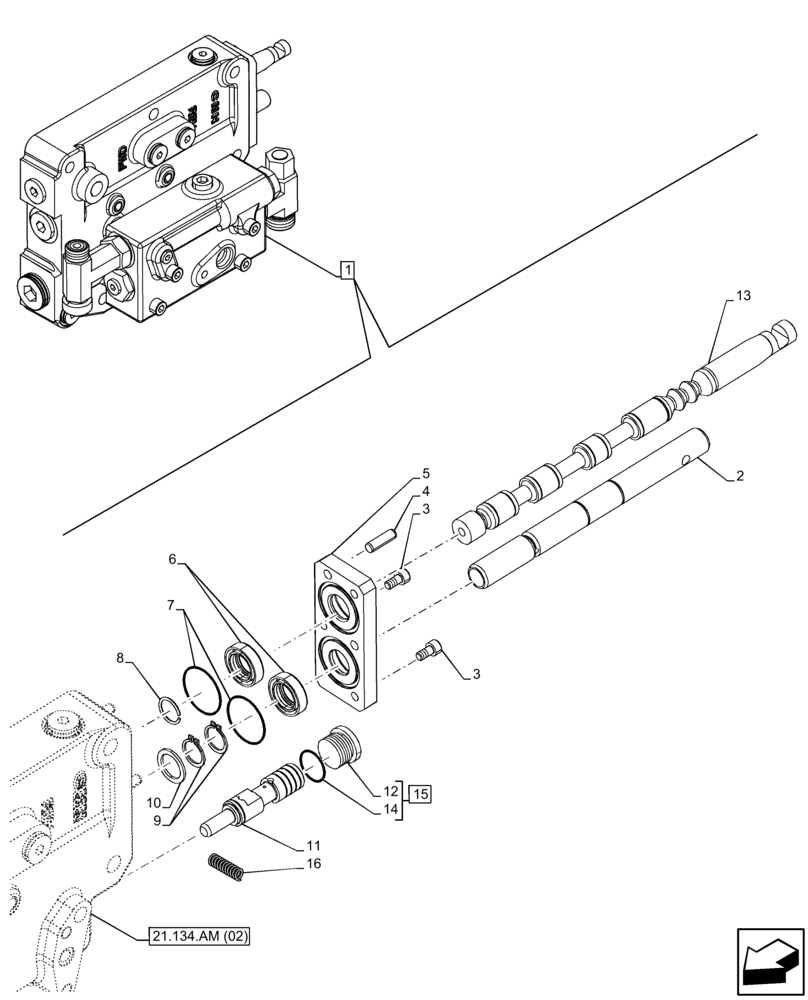

Запчасти Case IH FARMALL 110C (21.134.AM[03]) - TRANSMISSION CONTROL VALVE, POWERSHUTTLE, COMPONENTS (21) - TRANSMISSION

1

47522509

VALVE, PRESSURE CONT

ASSY, Incl 2 - 16

1шт.

See Control Valve Components also on Figure 21.104.AK (02), (04), (05)

1шт.

2

47412089

ROD,16mm x 182.87mm

1шт.

3

14304021

HEX SOC SCREW,M5 x 10mm, Cl 8.8

3шт.

4

10336210

DOWEL,M6 x 20

2шт.

5

47396563

COVER

1шт.

6

84273378

SEAL,16mm ID x 26mm OD x 7mm Thk

2шт.

7

9626940

O-RING,0.07" Thk x 1.114" ID, -24, Cl 6, 90 Duro

2шт.

8

13397776

SNAP RING,M16, Int

1шт.

9

11066476

SNAP RING,M16, Ext

2шт.

10

84275592

RING,16.25mm ID x 22mm OD x 1.5mm Thk

1шт.

11

84289760

SPOOL

1шт.

12

NSS

NOT SOLD SEPARAT

Plug, Incl in 15

1шт.

13

47408519

ROD,14mm x 266mm

1шт.

14

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

15

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

ASSY, Incl 12, 14

1шт.

16

84414724

SPRING,13.18mm

1шт.
