Запчасти Case IH FARMALL 110C (21.118.AF[03]) - VAR - 390328, 743559, 744580, 744581, 744990 - TRANSMISSION, DRIVE, HOUSING, 4WD (21) - TRANSMISSION

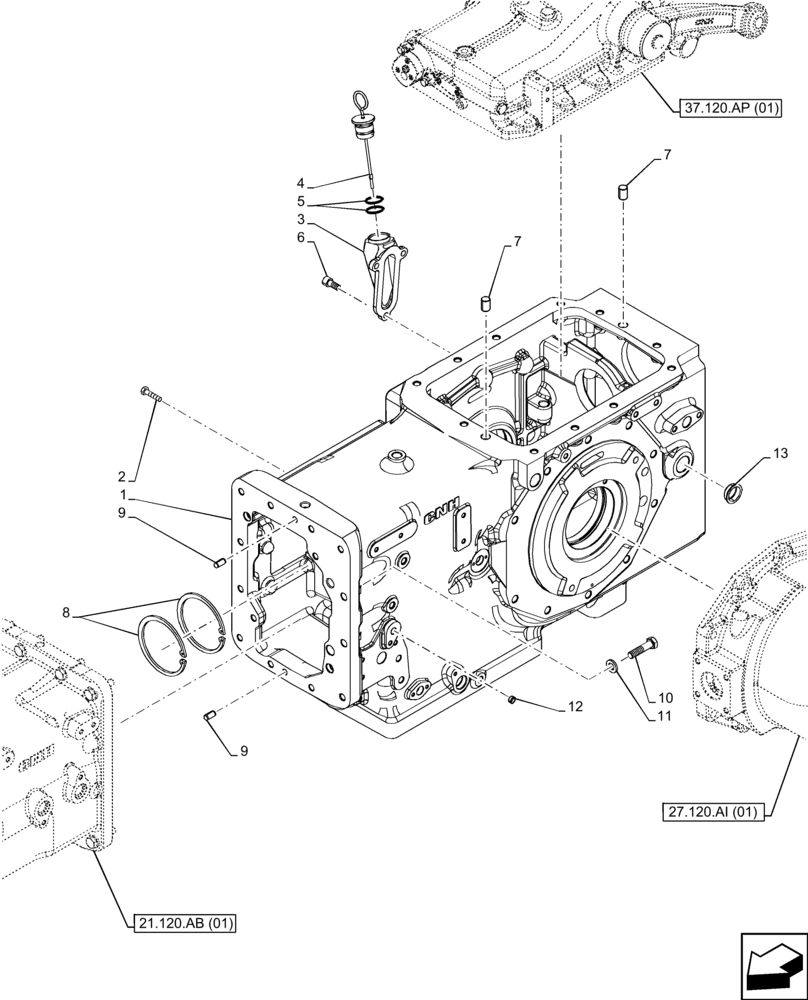

Схема запчастей Case IH FARMALL 110C - (21.118.AF[03]) - VAR - 390328, 743559, 744580, 744581, 744990 - TRANSMISSION, DRIVE, HOUSING, 4WD (21) - TRANSMISSION
9
1
9
8
2
4
7
12
5
11
21.120.ab (01)
3
6
7
27.120.ai (01)
13
37.120.ap (01)
10

Артикул

Название

Примечание

Количество

1

47666992

TRANSMISSION HOUSING

1шт.

2

10923221

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

3

5177062

NECK FILLER

1шт.

4

47544277

DIPSTICK

1шт.

5

14457980

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

2шт.

6

14360121

HEX SOC SCREW,M10 x 1.25 x 22mm, Cl 8.8, Full Thd

3шт.

7

5119529

DOWEL,15mm OD x 22mm L

2шт.

8

11075476

SNAP RING,M110, Int

2шт.

9

4988170

PIN,10mm OD x 20mm L

2шт.

10

15540834

BOLT,Hex, M12 x 1.25 x 50mm, Cl 10.9

M12 x 1.25 x 50mm

2шт.

11

11198674

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 3.2mm Thk

2шт.

12

14328301

PLUG,M12, Tapered

1шт.

13

5160960

PLUG,30mm

1шт.

Выбрано товаров: 13
