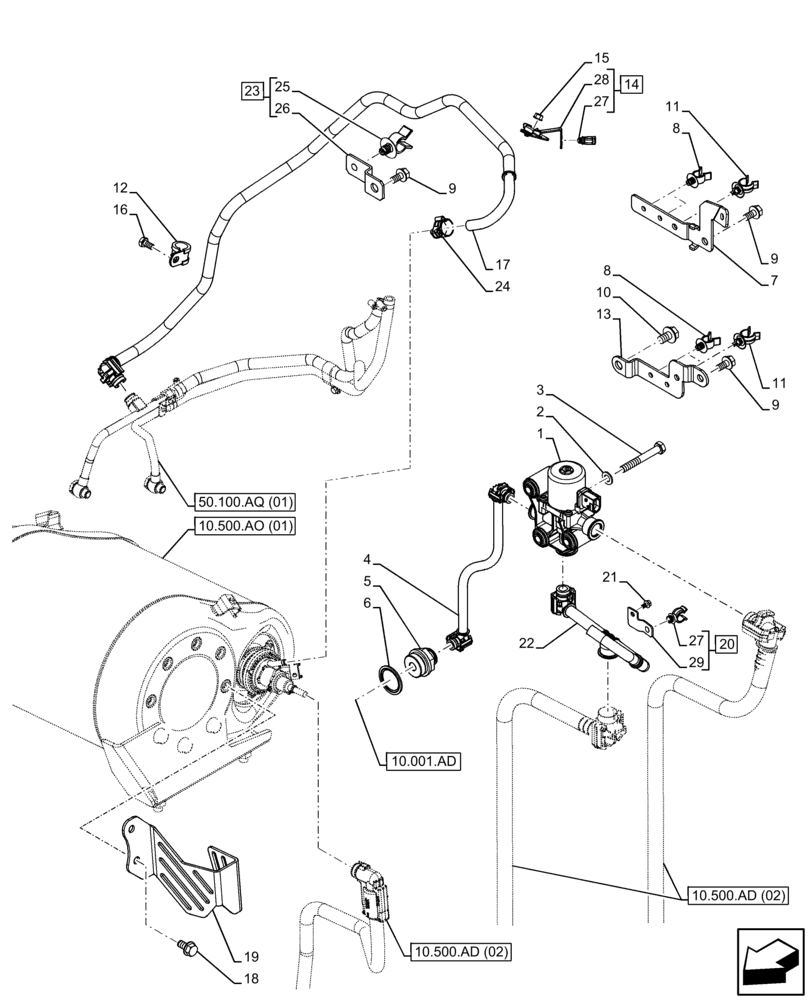

Запчасти Case IH FARMALL 110C (10.500.AD[01]) - VAR - 743543, 744574 - DEF/ADBLUE™, LINE (10) - ENGINE

1

84483089

HEATER,12V

1шт.

2

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

3

300382

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8, Full Thd

M8 x 60 Full 8.8 ZND

3шт.

4

47456041

PIPE

Delivery Pipes Coolant

1шт.

5

47479199

PIPE FITTING

1шт.

6

99469380

GASKET,33mm ID x 45mm OD x 2.8mm Thk

1шт.

7

47647055

BRACKET

Hoses Support

1шт.

8

47564501

MOUNT

Top Fir Tree Clip 0.8 Thk

4шт.

9

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

3шт.

10

86531147

BOLT,Hex, M10 x 16mm, Cl 8.8, Full Thd

1шт.

11

47570641

CLIP,0.7-3.5 Thk

Top Fir Tree Clip 0.8-4.0 Thk

3шт.

12

10441490

COLLAR,14mm, Coat, 7mm Bolt Hole, P Type

2шт.

13

47632510

BRACKET

Hoses Support

1шт.

14

47649545

BRACKET

Hoses Support, ASSY, Incl 27 (Qty 1), 28

1шт.

15

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

16

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

2шт.

17

47497796

PIPE

Coolant Outlet Dosing Module

1шт.

18

47565515

BOLT,M8 x 16mm

2шт.

19

47626787

BRACKET

Guard

1шт.

20

47508446

BRACKET

Hoses Support, ASSY, Incl 27 (Qty 1), 29

1шт.

21

16296924

FLANGE BOLT,Hvy Hex, M6 x 14mm, Cl 8.8, Full Thd

1шт.

22

47497797

PIPE

Coolant Inlet Dosing Module

1шт.

23

47488792

BRACKET

Hoses Support, ASSY, Incl 25, 26

1шт.

24

47730403

HOSE CLAMP,10mm - 12.5mm

2шт.

25

47564501

MOUNT

1шт.

26

NSS

NOT SOLD SEPARAT

Support, Incl in 23

1шт.

27

47556035

MOUNT

2шт.

28

NSS

NOT SOLD SEPARAT

Support, Incl in 14

1шт.

29

NSS

NOT SOLD SEPARAT

Support, Incl in 20

1шт.
