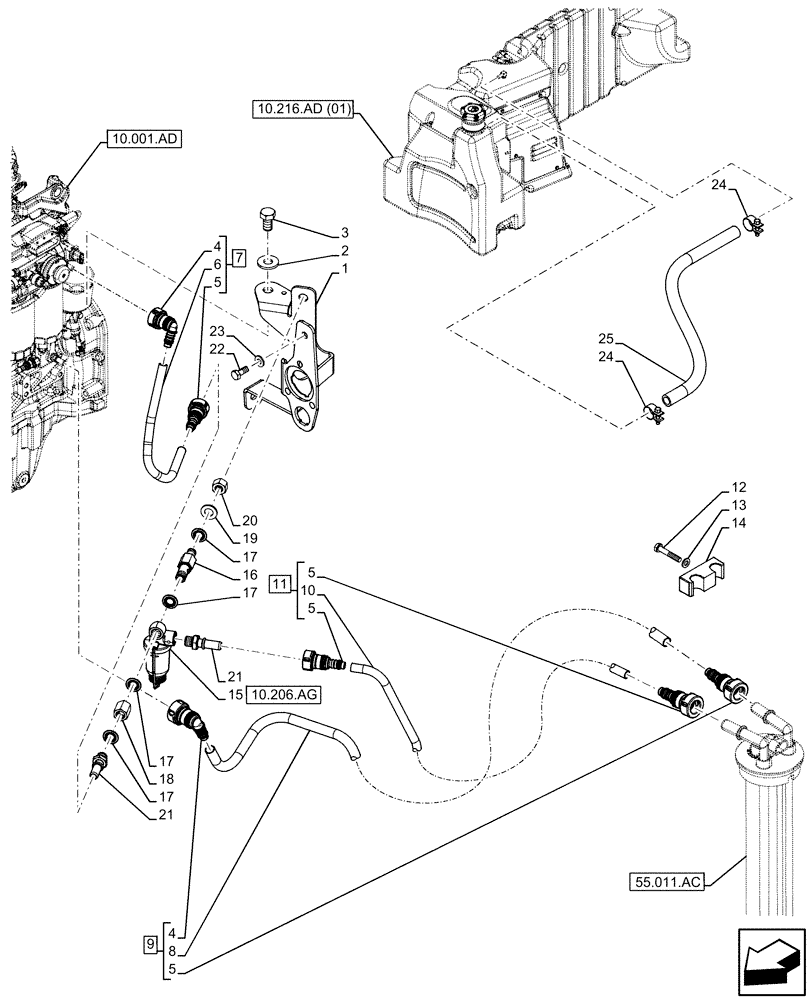

Запчасти Case IH FARMALL 110C (10.216.BA) - VAR - 743543, 744574 - FUEL TANK, LINE (10) - ENGINE

1

84526159

BRACKET

Fuel Filter Support

1шт.

2

12646904

WASHER,12.2mm ID x 28mm OD x 3mm Thk

1шт.

3

86637972

BOLT,Hex, M12 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

4

84527503

FITTING,11.8mm ID, 90°

2шт.

5

84472850

FITTING,11.8mm ID, Straight

4шт.

6

NSS

NOT SOLD SEPARAT

Tube, Incl in 7

1шт.

7

84473049

FUEL TUBE

ASSY, Incl 4 (Qty 1), 5 (Qty 1), 6

1шт.

8

NSS

NOT SOLD SEPARAT

Tube, Incl in 9

1шт.

9

47635667

FUEL TUBE

ASSY, Incl 4 (Qty 1), 5 (Qty 1), 8

1шт.

10

NSS

NOT SOLD SEPARAT

Tube, Incl in 11

1шт.

11

47635665

FUEL TUBE

ASSY, Incl 5 (Qty 2), 10

1шт.

12

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

3шт.

13

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

3шт.

14

87745377

BRACKET

14mm Pipes Housing

3шт.

15

84328562

FILTER ASSY,40mm OD x 109mm L, M14 x 1.5, 350 Microns

1шт.

16

84364449

ADAPTER,M14 x 1.5mm / M12 x 1.25mm, 69.5mm Length

1шт.

17

87590622

SEALING WASHER,14.7mm ID x 22mm OD x 1.5mm Thk

4шт.

18

84364450

FLANGE NUT,Hex, M14 x 1.5, 22.5 Thd

1шт.

19

11197974

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD

1шт.

20

16101514

NUT,M12 x 1.25, Cl 8

1шт.

21

84423906

PIPE FITTING,M14 x 1.5mm / 11.8mm OD

2шт.

22

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

23

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

1шт.

24

10186890

HOSE CLAMP,M14-16, Worm

2шт.

25

47639790

FUEL TUBE

Tank Breather

1шт.
