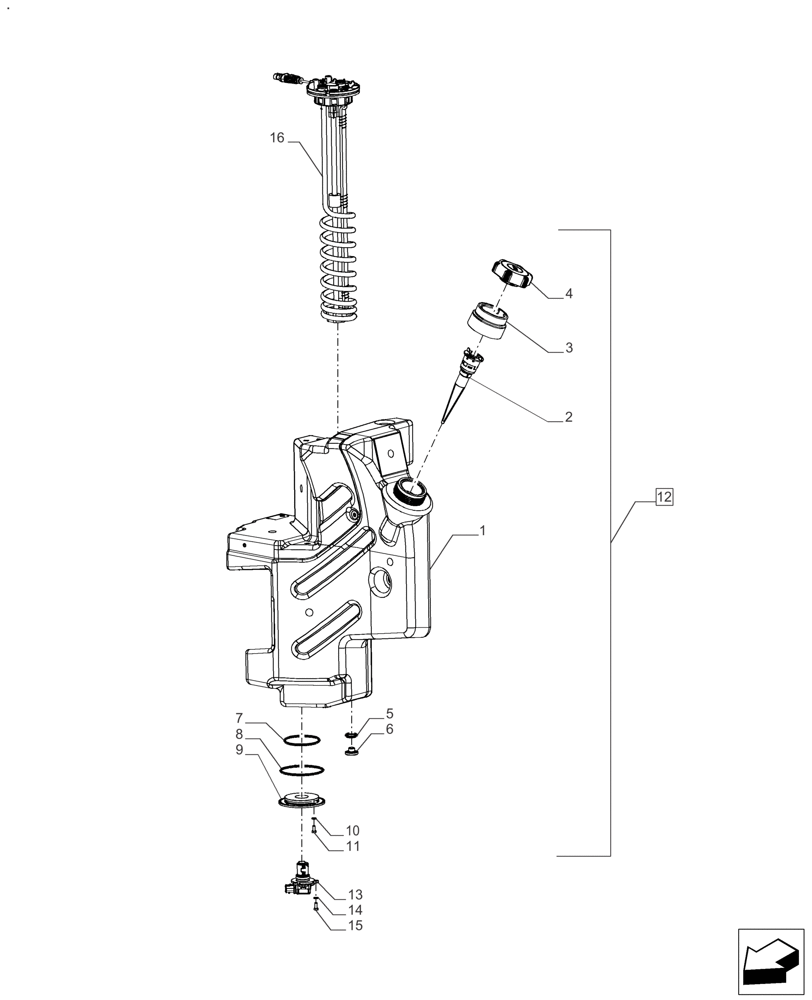

Запчасти Case IH FARMALL 110A (10.500.AR[01]) - VAR - 391270 - UREA TANK (10) - ENGINE

1

47636552

Tank Assy. Urea

1шт.

2

47657024

FILTER, DEF,100 Micron

1шт.

3

84236736

NECK FILLER

1шт.

4

84206552

FILLER CAP,Male

1шт.

5

47572884

O-RING

0.921 x 0.139 213 3

1шт.

6

47636555

PLUG

Plug, Hex Socket, Urea Tank

1шт.

7

47447771

O-RING,3.359” ID x 3.637” OD x 1/8” W

0.139 x 3.359 237 3

1шт.

8

47451700

O-RING,4.487” ID x 4.693” OD x 3/32” W

0.103 x 4.487 157 3

1шт.

9

47446340

FLANGE

Sensor

1шт.

10

10519421

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

4шт.

11

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

4шт.

12

47628578

TANK

Incl 1 - 11

1шт.

13

47520143

SENSOR,12V

Urea Quality, 12V

1шт.

14

10519421

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

3шт.

15

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

3шт.

16

84144089

SENDER UNIT

Sensor, Def Level

1шт.
