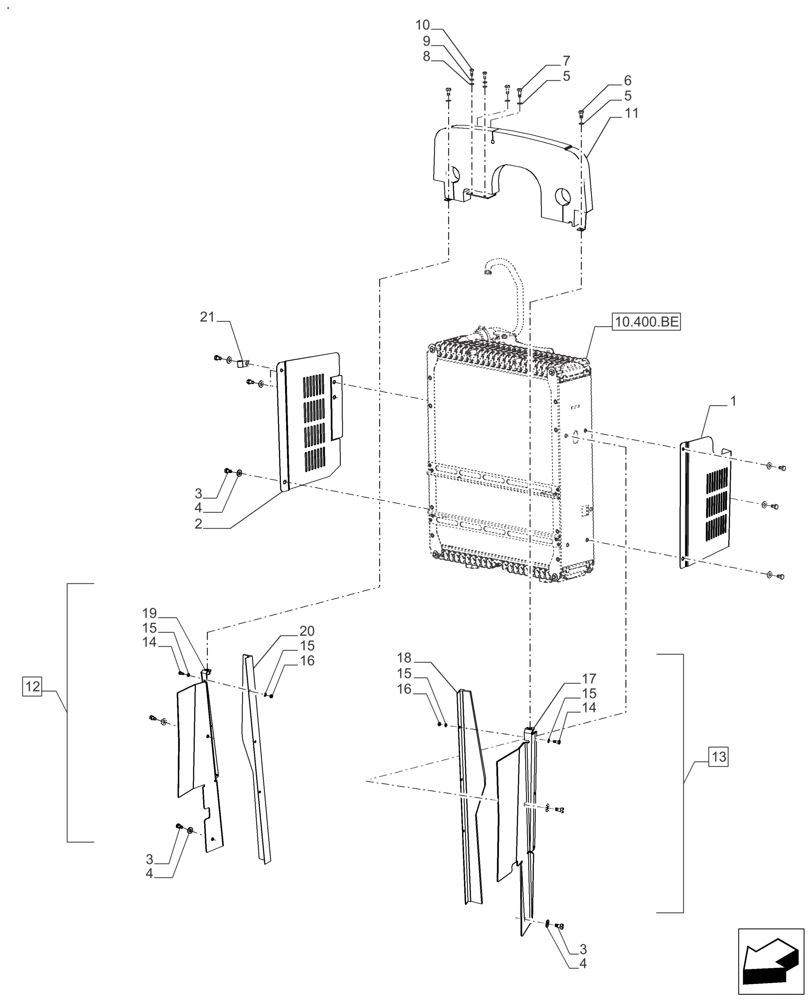

Запчасти Case IH FARMALL 110A (10.400.BF[01]) - VAR - 391265 - RADIATOR & RELATED PARTS (10) - ENGINE

1

47536453

GUARD

LH Engine

1шт.

2

47536458

GUARD

RH Engine

1шт.

3

86624003

BOLT,Hex, M8 x 14mm, Cl 8.8, Full Thd

11шт.

4

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

11шт.

5

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

4шт.

6

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

7

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

8

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

9

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

2шт.

10

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

11

47762292

FOAM

Foam, Assy. Glue

1шт.

12

47739525

SEAL

Seal Assy. Hood RH. Incl 14 - 16, 19 - 20

1шт.

13

47739519

SEAL

Seal Assy. Hood LH. Incl 14 - 18

1шт.

14

86632597

BOLT,M5 x 0.8 x 15.65mm, Cl 8.8

6шт.

15

10571474

LOCK WASHER,5.10mm ID x 9.20mm OD x 1.20mm, C72, DAC

12шт.

16

81838649

NUT,M5

6шт.

17

47739517

SUPPORT

LH Radiator Seal

1шт.

18

47602247

SEAL

Side Radiator, LH

1шт.

19

47739524

SUPPORT

RH Radiator Seal

1шт.

20

47690188

SEAL

Side Radiator, RH

1шт.

21

83976853

CLIP,12.7mm, Coat, 11.5mm Bolt Hole, J Type

1шт.
