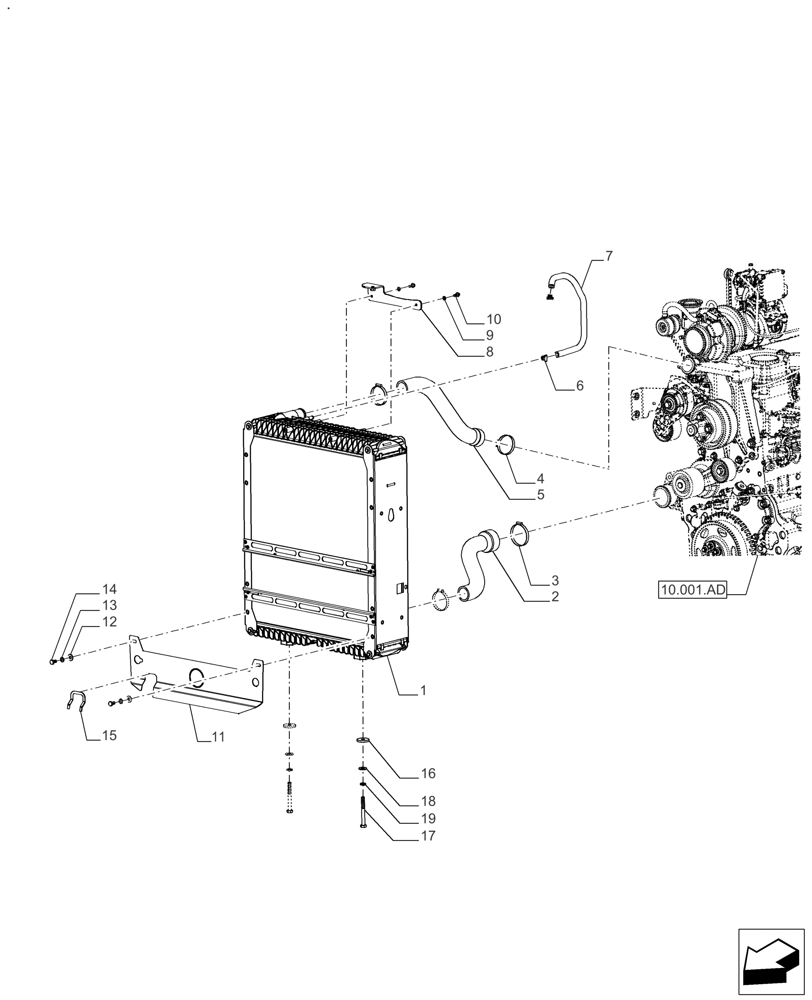

Запчасти Case IH FARMALL 110A (10.400.BE) - VAR - 391265 - RADIATOR (10) - ENGINE

1

47505047

RADIATOR

1шт.

2

47519785

HOSE

Radiator, Supply

1шт.

3

81826032

HOSE CLAMP,3.25"

1шт.

4

83989821

CLAMP

3шт.

5

47519783

RADIATOR HOSE

Return

1шт.

6

83935607

HOSE CLAMP

2шт.

7

47519786

HOSE

Tank Radiator

1шт.

8

47519765

SUPPORT

Support, Expansion Tank

1шт.

9

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

2шт.

10

87752073

SCREW,Hex Wash Hd, M6 x 1 x 16mm

Tapping, HWHD M6X16 THDRL CST ZND

2шт.

11

47523576

COVER

Radiator LO

1шт.

12

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

13

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

2шт.

14

86624003

BOLT,Hex, M8 x 14mm, Cl 8.8, Full Thd

2шт.

15

82983737

MOLDING,143mm L

Edge Trim Window Grill

1шт.

16

82988223

INSULATOR

Shock Insulating Sup-Rad

2шт.

17

86637965

BOLT,Hex, M10 x 1.25 x 90mm, Cl 8.8

2шт.

18

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

19

85700672

LOCK WASHER,M10

2шт.
