Запчасти Case IH FARMALL 110A (10.216.BA[02]) - VAR - 391270 - FUEL TANK, LINES (UREA/COOLING) (10) - ENGINE

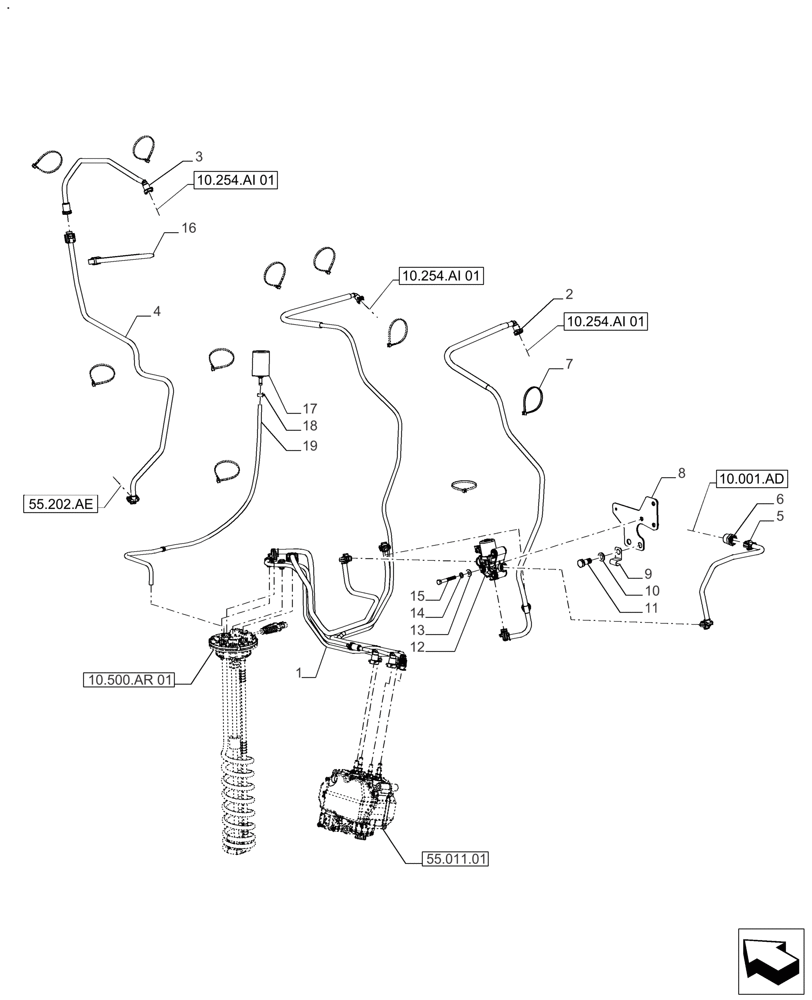

Схема запчастей Case IH FARMALL 110A - (10.216.BA[02]) - VAR - 391270 - FUEL TANK, LINES (UREA/COOLING) (10) - ENGINE
10.001.ad
11
1
8
14
19
15
6
17
5
18
3
2
9
4
13
12
10
16
7
10.500.ar 01
10.254.ai 01
10.254.ai 01
10.254.ai 01
55.011.01
55.202.ae

Артикул

Название

Примечание

Количество

1

47534690

HYDRAULIC HOSE

Def Lines

1шт.

1a

47534697

Def Suction

FILTER

1шт.

In 47534690 Def Line

1шт.

2

47534727

HOSE

Hydraulic Assy. Cool -DM

1шт.

3

47534732

HOSE

Hydraulic Assy. Cool DM-Engine 1

1шт.

4

47776701

HOSE

Assy. Cool DM-Engine 2

1шт.

5

47534709

HOSE,Hose Assembly

Tube, Hydraulic Assy. Cool Engine

1шт.

6

84291210

ADAPTER

1шт.

7

83933061

STRAP

7X.193 IN

10шт.

8

47497022

SUPPORT

1шт.

9

82980321

SUPPORT

Clamp, Rear Harness Support

1шт.

10

140030

LOCK WASHER,M14

2шт.

11

86509597

BOLT,Hex, M30 x 14mm, Cl 8.8

2шт.

12

84483089

HEATER,12V

Valve, Heater, 12V

1шт.

13

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

3шт.

14

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

3шт.

15

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

3шт.

16

87659208

CIRCLIP

1шт.

17

47437399

FUEL FILTER

Tank Vent

1шт.

18

82875741

HOSE CLAMP,1/4" - 5/8"

1шт.

19

47534771

PIPE

Breather Sender

1шт.

Выбрано товаров: 21
