(88.100.35[18]) - VAR - 342574, 342522 - DIA KIT, CONVERSION KIT FROM 3 TO 4 VALVES

Запчасти Case IH FARMALL 110A (88.100.35[18]) - VAR - 342574, 342522 - DIA KIT, CONVERSION KIT FROM 3 TO 4 VALVES (88) - ACCESSORIES

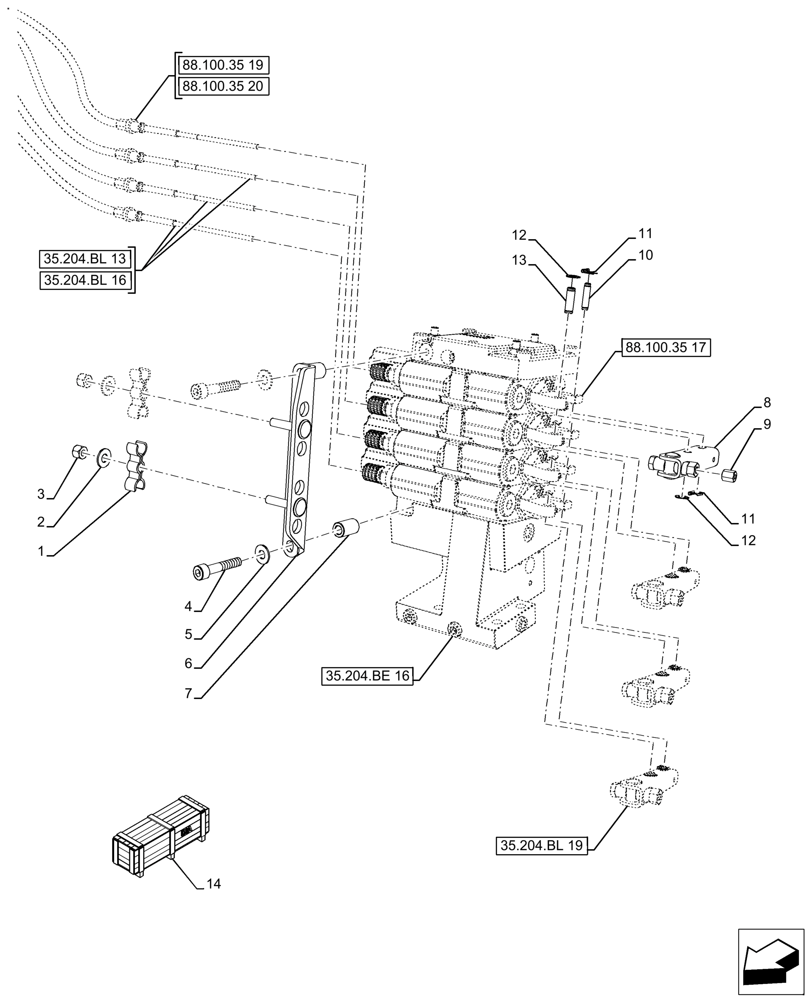

Схема запчастей Case IH FARMALL 110A - (88.100.35[18]) - VAR - 342574, 342522 - DIA KIT, CONVERSION KIT FROM 3 TO 4 VALVES (88) - ACCESSORIES
35.204.bl 13
9
1
13
12
10
7
2
4
14
12
11
5
6
3
8
88.100.35 19
88.100.35 17
88.100.35 20
11
35.204.be 16
35.204.bl 16
35.204.bl 19
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5191951

CLAMP,3 Hoses

2шт.

2

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

3

412250

NUT,M8 x 1.25, Cl 8

2шт.

4

864-8040

HEX SOC SCREW,M8 x 40mm, Cl 8.8

2шт.

5

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

6

84486547

BRACKET

1шт.

7

47996750

SPACER,24.8mm L

1шт.

8

87358094

LEVER

Control

1шт.

9

82012528

NUT,Hex, M6 x 1

1шт.

10

5193177

PIN,6mm OD x 29.48mm L

1шт.

11

11063976

CLIP

M6 x 5 x .74 Retaining

2шт.

12

9990741

SNAP RING,M8, Ext

2шт.

13

5113008

PIN,8mm OD x 26mm L

1шт.

14

47929596

KIT

Dia Kit, Conversion from 3 to 4 Valves, Cab, Incl 1 - 13

1шт.

To See the Full DIA KIT Composition Look for All the Figures Where the DIA KIT P/N is Shown

1шт.

14

47929610

KIT

Dia Kit, Conversion from 3 to 4 Valves, Rops, Incl 1 - 13

1шт.

To See the Full DIA KIT Composition Look for All the Figures Where the DIA KIT P/N is Shown

1шт.
