(55.510.BO[03]) - VAR - 393315 - MAIN HARNESS, W/O CAB, PART II

Запчасти Case IH FARMALL 110A (55.510.BO[03]) - VAR - 393315 - MAIN HARNESS, W/O CAB, PART II (55) - ELECTRICAL SYSTEMS

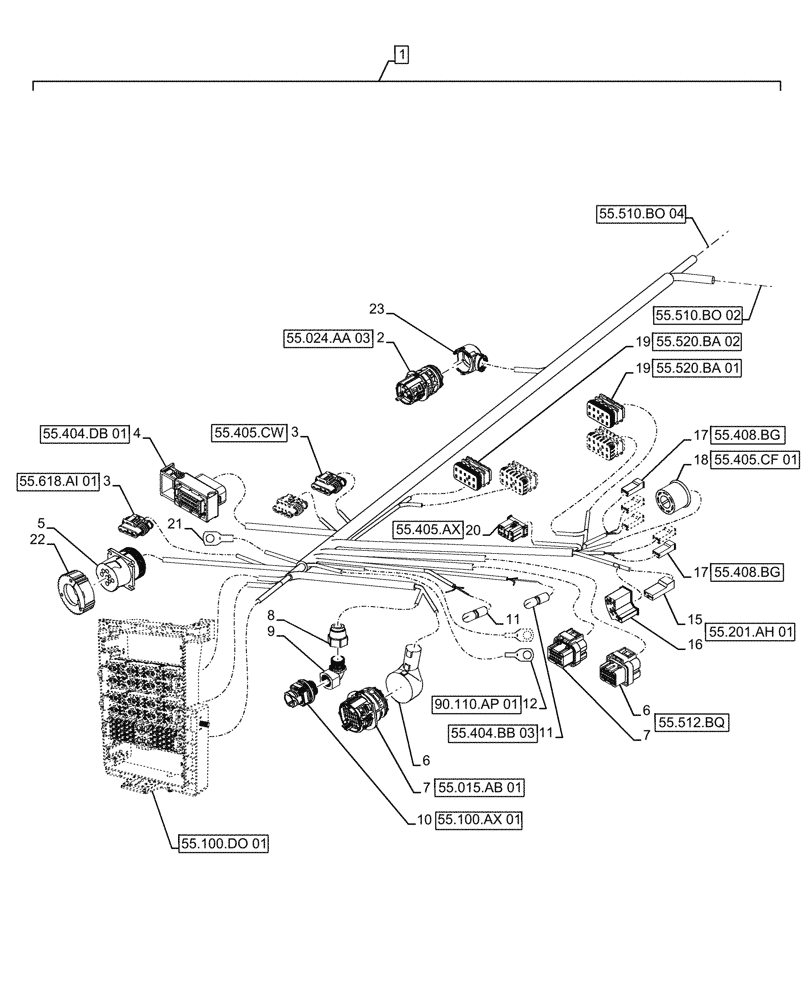

Схема запчастей Case IH FARMALL 110A - (55.510.BO[03]) - VAR - 393315 - MAIN HARNESS, W/O CAB, PART II (55) - ELECTRICAL SYSTEMS
55.510.bo 04
3
11
7
15
17
1
11
17
7
8
6
20
22
5
6
19
9
19
3
23
18
16
21
10
12
2
4
55.520.ba 01
55.408.bg
55.408.bg
55.015.ab 01
55.618.ai 01
55.404.bb 03
55.100.do 01
55.520.ba 02
55.405.cw
55.100.ax 01
55.405.cf 01
55.405.ax
55.024.aa 03
55.510.bo 02
55.404.db 01
55.201.ah 01
55.512.bq
90.110.ap 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47926934

WIRE HARNESS

Main Less Cab, Incl 2 - 23

1шт.

2

84414690

Connector, Electric

1шт.

3

87687242

ELEC CONNECTOR,4 Way

3шт.

4

87699386

MULTIPOLE CONNECTOR,Female, 24 Pole

1шт.

5

82019146

MULTIPOLE CONNECTOR,Male , 9 Pole

1шт.

6

47884388

Backshell

1шт.

7

84142903

ELEC CONNECTOR

Connector

1шт.

8

84128876

ELEC CONNECTOR

1шт.

9

87745235

90 Degree Elbow

1шт.

10

84153320

ELEC CONNECTOR

Connector, Electric

1шт.

11

84153391

TERMINAL

6шт.

12

84313705

TERMINAL

2шт.

13

87419488

MULTIPOLE CONNECTOR,Female, 26 Pole

1шт.

14

82016219

MULTIPOLE CONNECTOR,Female, 26 Pole

1шт.

15

87747155

WIRE CONNECTOR

1шт.

16

87714250

ELEC CONNECTOR

1шт.

17

87675193

ELEC CONNECTOR

5шт.

18

84289727

WIRE CONNECTOR

1шт.

19

84819781

ELEC CONNECTOR,Female

4шт.

20

87747425

WIRE CONNECTOR

1шт.

21

84313702

TERMINAL

1шт.

22

84074633

COVER

1шт.

23

84479008

Swiveling Adaptor FCI 14/16

1шт.
