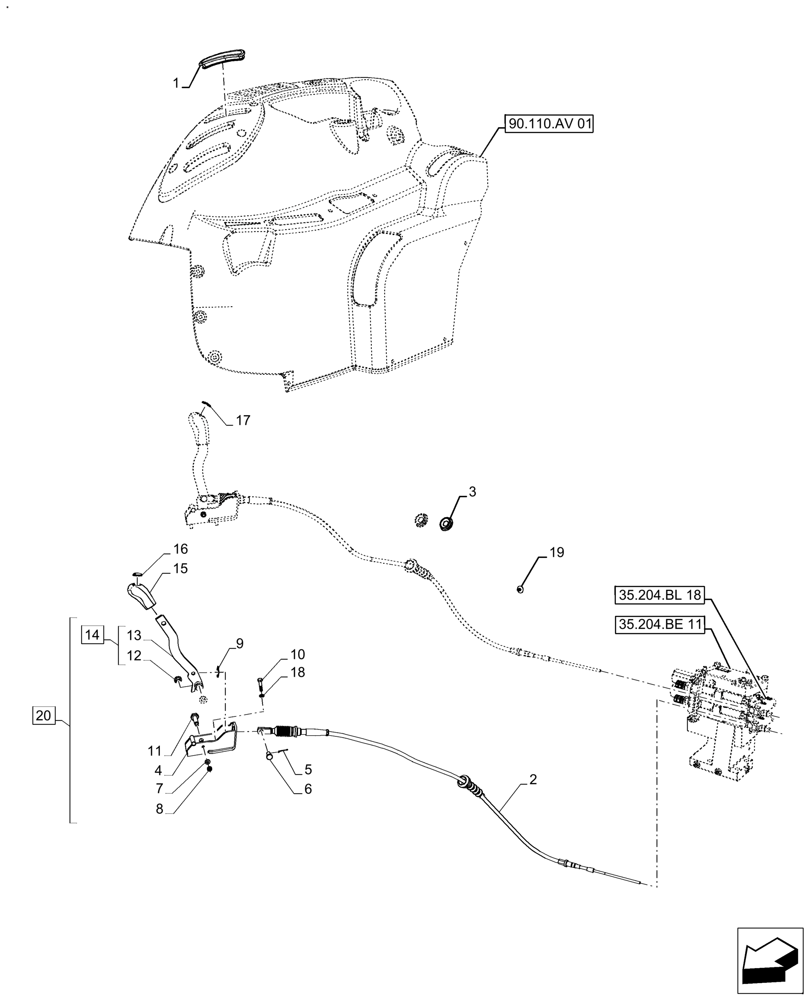

Запчасти Case IH FARMALL 110A (35.204.BL[15]) - VAR - 429472 - 2 REMOTE CONTROL VALVES, CONTROL LEVER, W/O CAB (35) - HYDRAULIC SYSTEMS

1

47488551

PLUG,Lapreme black color

1шт.

2

48011030

CABLE

Assy. Remote Control Valve

2шт.

3

81862738

PLUG,M38 x 28 x 5mm

2шт.

4

47687173

SUPPORT

Assy. Lever, Remote Valve

1шт.

5

81813879

COTTER PIN,1/16" x 3/4"

2шт.

6

385818

CLEVIS PIN,M8 x 20

2шт.

7

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

1шт.

8

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

1шт.

9

81865873

CLIP,19.40mm D

Hydraulic Remote Control Valve

2шт.

10

10902821

SCREW,Hex, M6 x 30mm, Cl 8.8

4шт.

11

84487136

PIN,M6 x 1, 49.5mm L

1шт.

12

84487137

BUSHING,10mm ID x 12mm OD x 10mm L

1шт.

13

47864993

LEVER

Assy. Remote Valve

1шт.

14

47861016

LEVER

Assy. With Bushing, Incl 12, 13

1шт.

15

47056482

KNOB

Shift

2шт.

16

87698505

DATA PLAQUE

Green

1шт.

17

87698506

DATA PLAQUE

Blue

1шт.

18

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

4шт.

19

83951873

PLUG

Back Window Frame Assy. Lower

1шт.

20

47861017

SUPPORT

Support, Remote Valve, Incl 4, 7, 8, 11 - 14

2шт.
