Запчасти Case IH FARMALL 110A (35.204.BL[12]) - VAR - 429472 - 2 REMOTE CONTROL VALVES, CONTROL LEVER, CAB (35) - HYDRAULIC SYSTEMS

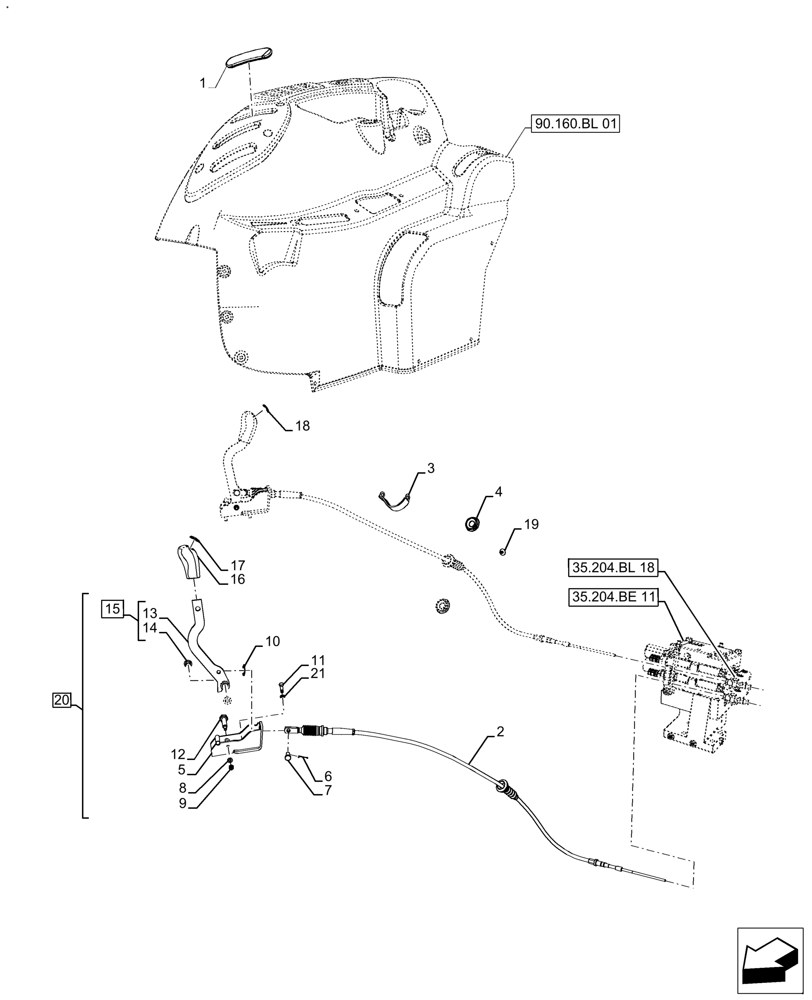

Схема запчастей Case IH FARMALL 110A - (35.204.BL[12]) - VAR - 429472 - 2 REMOTE CONTROL VALVES, CONTROL LEVER, CAB (35) - HYDRAULIC SYSTEMS
90.160.bl 01
11
15
20
18
17
19
12
5
10
6
7
2
14
13
9
8
16
21
4
3
1
35.204.be 11
35.204.bl 18

Артикул

Название

Примечание

Количество

1

47841890

COVER

Cover

1шт.

2

48011030

CABLE

Assy. Remote Control Valve

2шт.

3

10448790

CLAMP,30mm, Coat, 9mm Bolt Hole, P Type

1шт.

4

81862738

PLUG,M38 x 28 x 5mm

2шт.

5

47687173

SUPPORT

Assy. Lever, Remote Valve

1шт.

6

81813879

COTTER PIN,1/16" x 3/4"

2шт.

7

385818

CLEVIS PIN,M8 x 20

2шт.

8

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

1шт.

9

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

1шт.

10

81865873

CLIP,19.40mm D

Hydraulic Remote Control Valve Cable Retaining

2шт.

11

120100

BOLT,M6 x 20mm, Cl 8.8

4шт.

12

84487136

PIN,M6 x 1, 49.5mm L

1шт.

13

47861013

LEVER

Assy. Remote Valve

1шт.

14

84487137

BUSHING,10mm ID x 12mm OD x 10mm L

2шт.

15

47861014

LEVER

Assy. With Bushing, Incl 13, 14

1шт.

16

47056482

KNOB

Shift

2шт.

17

87698505

DATA PLAQUE

Green

1шт.

18

87698506

DATA PLAQUE

Blue

1шт.

19

83951873

PLUG

Back Window Frame Assy. Lower

1шт.

20

47861015

SUPPORT

Remote Valve, Incl 5, 8, 9, 12 - 15

2шт.

21

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

4шт.

Выбрано товаров: 21
