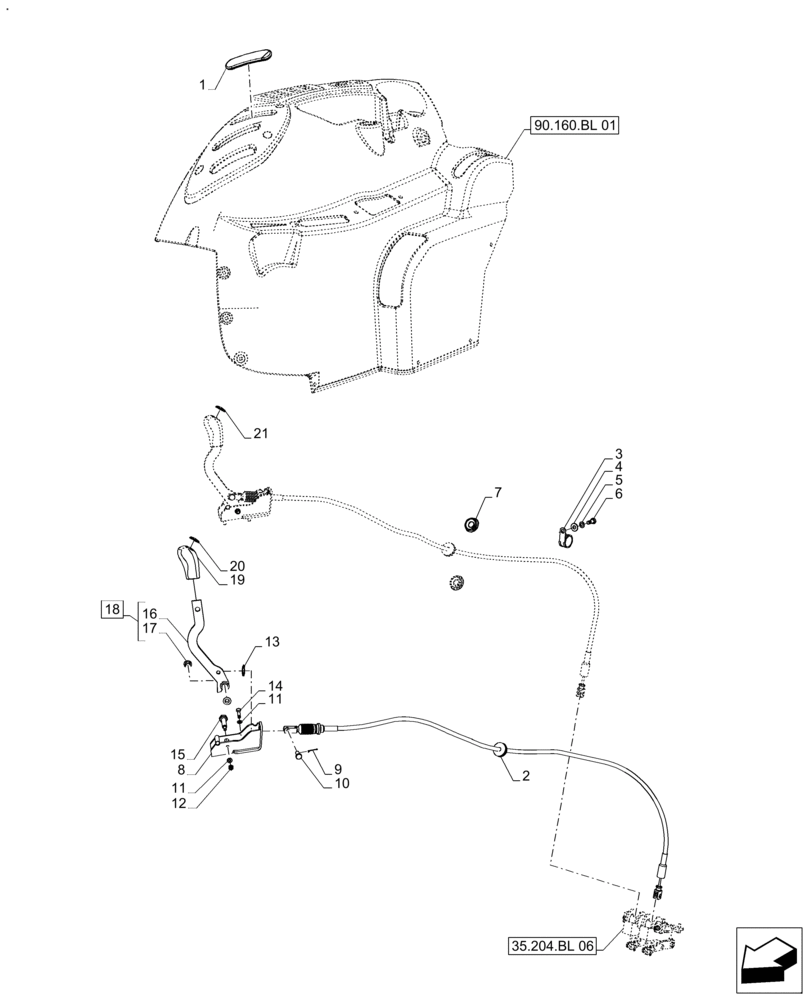

Запчасти Case IH FARMALL 110A (35.204.BL[01]) - VAR - 391267 - 2 REMOTE CONTROL VALVES, CONTROL LEVER, CAB (35) - HYDRAULIC SYSTEMS

1

47841890

Cover

1шт.

2

48120752

Assy. Remote Control Valve

CABLE

2шт.

3

10448790

CLAMP,30mm, Coat, 9mm Bolt Hole, P Type

2шт.

4

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

5

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

1шт.

6

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

7

81862738

PLUG,M38 x 28 x 5mm

2шт.

8

47687173

SUPPORT

Assy. Lever, Remote Valve

2шт.

9

81813879

COTTER PIN,1/16" x 3/4"

2шт.

10

385818

CLEVIS PIN,M8 x 20

2шт.

11

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

6шт.

12

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

2шт.

13

81865873

CLIP,19.40mm D

hydraulic Remote Control Valve Cable Retainig

2шт.

14

120100

BOLT,M6 x 20mm, Cl 8.8

4шт.

15

84487136

PIN,M6 x 1, 49.5mm L

2шт.

16

47861013

LEVER

Assy. Remote Valve

1шт.

17

84487137

BUSHING,10mm ID x 12mm OD x 10mm L

2шт.

18

47861014

LEVER

Incl 16, 17

2шт.

19

47056482

KNOB

Shift

2шт.

20

87698505

DATA PLAQUE

Green

1шт.

21

87698506

DATA PLAQUE

Blue

1шт.
