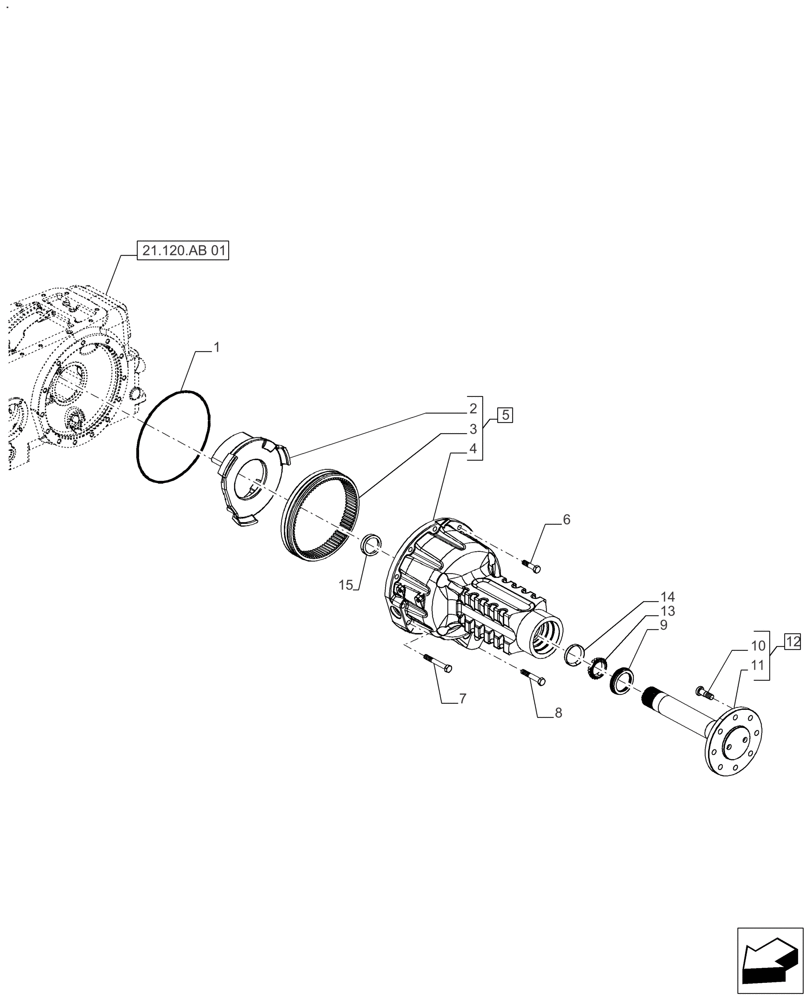

Запчасти Case IH FARMALL 110A (27.124.AD[01]) - VAR - 390331 - FINAL DRIVE HOUSING, STANDARD DUTY (27) - REAR AXLE SYSTEM

1

83997832

O-RING,3.63mm Thk x 328.14mm ID

2шт.

2

83997521

HOUSING

Rear Brake Outer

2шт.

3

81870541

RING GEAR,80 T

2шт.

4

73336535

AXLE HOUSING

LH

1шт.

4

73336536

AXLE HOUSING

RH

1шт.

5

73336837

Housing Rear Axle Assy. LH, Incl 2 - 4

1шт.

5

73336836

Housing Axle Assy. Rear RH, Incl 2 - 4

1шт.

6

81827627

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 5

20шт.

7

280183

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 5

4шт.

8

81821139

BOLT,Hex, 5/16" - 11 x 3 3/4", Gr 5

2шт.

9

81866390

OIL SEAL,88.52mm ID x 123.29mm OD x 22.94mm Thk

2шт.

10

83955490

SCREW,3/4"-16 x 59mm

16шт.

11

82864235

Rear Axle

SHAFT

2шт.

12

81867247

AXLE

Incl 10, 11

2шт.

13

82959376

BEARING ASSY

Cone, And Roller Assy. Differential

2шт.

14

82959374

BEARING CUP

Rear Axle Differential

2шт.

15

81866470

BEARING CUP

117.475mm OD

2шт.
