Запчасти Case IH FARMALL 110A (27.120.AR) - VAR - 330331 - WHEEL, HUB, ADAPTER (27) - REAR AXLE SYSTEM

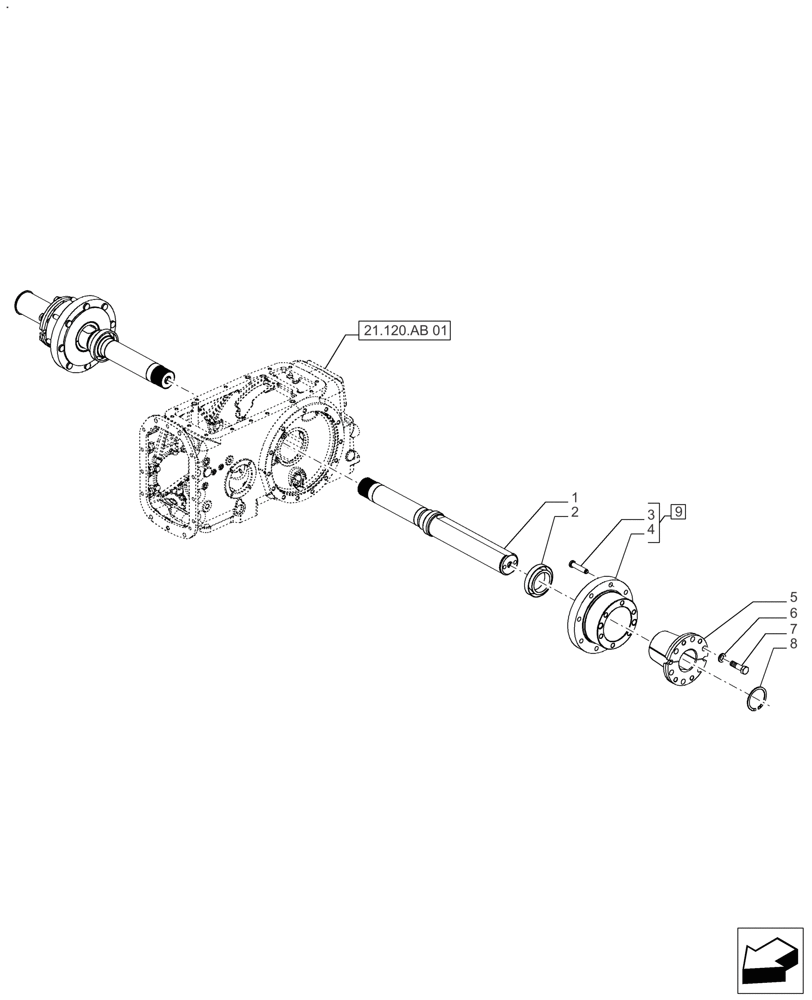

Схема запчастей Case IH FARMALL 110A - (27.120.AR) - VAR - 330331 - WHEEL, HUB, ADAPTER (27) - REAR AXLE SYSTEM
21.120.ab 01
8
1
6
3
2
9
5
7
4

Артикул

Название

Примечание

Количество

1

73338185

SHAFT

Bar Axle 98"

2шт.

2

81866516

BEARING ASSY,85.72mm ID x 133.38mm OD x 30.37mm W

Roller, Tapered

2шт.

3

87651027

STUD,M18 x 1.5 x 85mm, Cl 10.9

16шт.

4

47728582

Hub, Driving Wheel

2шт.

5

47699301

HUB

2шт.

6

87306816

CONE WASHER,20.00mm ID x 36.00mm OD x 4.50mm

12шт.

7

11125424

SCREW,Hex, M20 x 85mm, Cl 8.8

M20 x 85 8.8 DAC

12шт.

8

11071374

CIRCLIP,3mm Thk

90mm

2шт.

9

47728581

HUB

Driving Wheel With Screws, Incl 3, 4

2шт.

Выбрано товаров: 9
