(27.100.AP[04]) - VAR - 330066 - TRANSFER BOX, CONTROL, 4WD, WITH CREEPER

Запчасти Case IH FARMALL 110A (27.100.AP[04]) - VAR - 330066 - TRANSFER BOX, CONTROL, 4WD, WITH CREEPER (27) - REAR AXLE SYSTEM

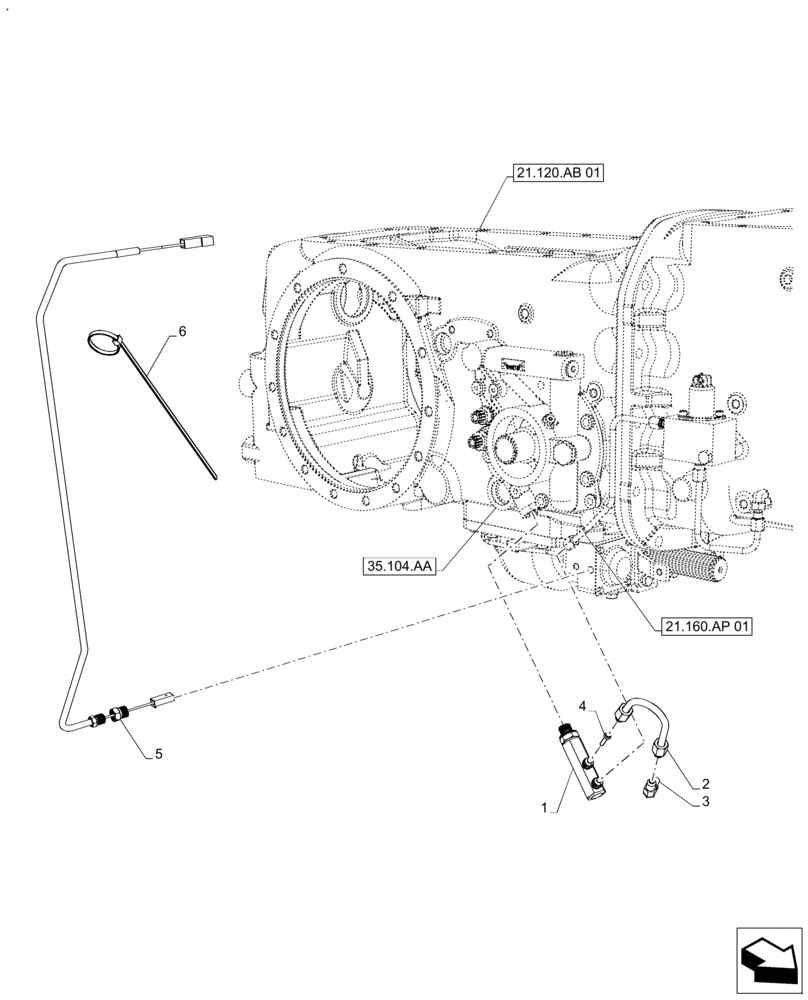

Схема запчастей Case IH FARMALL 110A - (27.100.AP[04]) - VAR - 330066 - TRANSFER BOX, CONTROL, 4WD, WITH CREEPER (27) - REAR AXLE SYSTEM
21.160.ap 01
3
4
35.104.aa
1
6
5
21.120.ab 01
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

82982611

HYD CONNECTOR,M14 x 1.5 ORB x 1/2" - 20 JIC x 1/2" - 20 JIC

1шт.

2

73335683

TUBE

Assy. Front Axle Case Pressure

1шт.

3

83927083

90 ELBOW,1/8" NPTF x 1/2"-20, 37 Degree Flare

1шт.

4

83927935

FILTER STRAINER

1шт.

5

73337234

TUBE

Assy./Harness Front Axle FWD

1шт.

6

83933061

STRAP

1шт.

Выбрано товаров: 6
