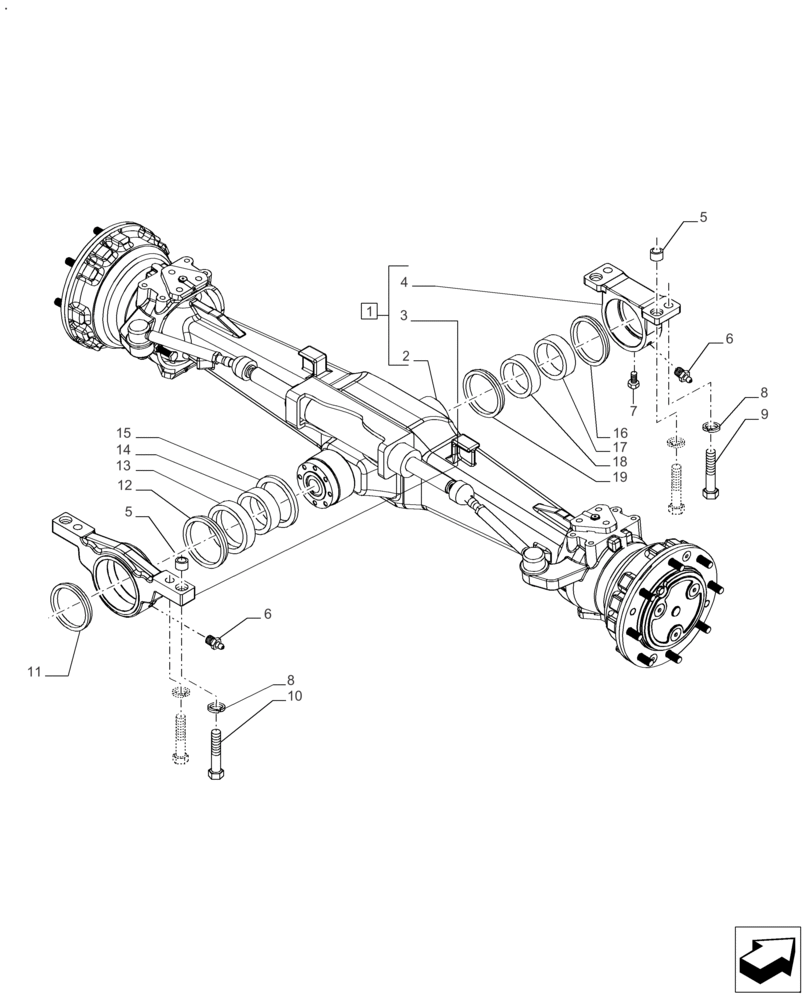

Запчасти Case IH FARMALL 110A (25.100.AD[01]) - VAR - 391292 - FRONT AXLE, 4WD, HOUSING, STANDARD DUTY (25) - FRONT AXLE SYSTEM

1

82988048

FRONT AXLE

Incl 2 - 4

1шт.

1

82988048R

REMAN-AXLE DIFFERENT

1шт.

1

82988048C

CORE-AXLE, MFD

Return Number

1шт.

2

82988046

AXLE

Front

1шт.

3

82920200

SUPPORT

Rear

1шт.

4

83992824

SUPPORT

Front

1шт.

5

83935737

SPACER,20.09mm ID x 30.02mm OD x 17mm L

4шт.

6

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

2шт.

7

83992819

BOLT,Hex, M16 x 25.5

1шт.

8

83917225

LOCK WASHER,Helical Spring, 0.766" ID x 1.285" OD x 0.226"

8шт.

9

11244637

BOLT,Hex, M18 x 1.5 x 60, 10.9

4шт.

10

15984631

BOLT,Hex, M18 x 1.5 x 70mm, Cl 10.9

4шт.

11

82920196

SEAL,125mm ID x 140mm OD x 12mm Thk

1шт.

12

82920195

SEAL,149.5mm ID x 165mm OD x 12mm Thk

1шт.

13

82920193

BUSHING

1шт.

14

82920233

BUSHING

1шт.

15

82920194

WASHER, THRUST

1шт.

16

83992820

GASKET

1шт.

17

83992844

BUSHING,115mm ID x 125mm OD x 42mm L

1шт.

18

9967993

BUSHING,115.2mm ID x 104.3mm OD x 44mm L

1шт.

19

83992826

THRUST WASHER

1шт.
