Запчасти Case IH FARMALL 110A (21.140.AE[02]) - TRANSMISSION - GEARS & SHAFT 8+8 (POWER SHUTTLE / MECHANICAL), 16+8 (POWER SHUTTLE / DUAL POWER) 30 KM (21) - TRANSMISSION

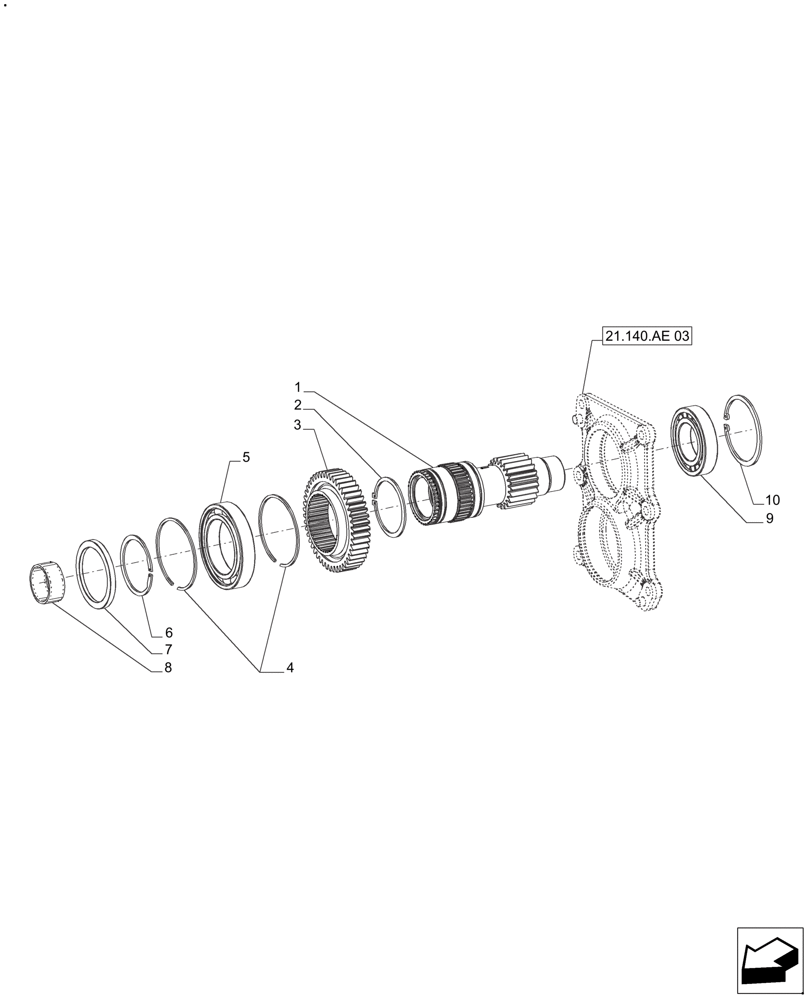

Схема запчастей Case IH FARMALL 110A - (21.140.AE[02]) - TRANSMISSION - GEARS & SHAFT 8+8 (POWER SHUTTLE / MECHANICAL), 16+8 (POWER SHUTTLE / DUAL POWER) 30 KM (21) - TRANSMISSION
3
1
7
5
10
4
6
8
21.140.ae 03
2
9

Артикул

Название

Примечание

Количество

1

84371392

MAIN SHAFT

SHAFT MAIN RANGE

1шт.

2

800-1182

SNAP RING,M82, Ext

1шт.

3

84371396

GEAR

GEAR HIGH RANGE DRIVER

1шт.

4

84392877

SNAP RING,M125

SEEGER SB 125

2шт.

5

81864405

BALL BEARING,80mm ID x 125mm OD x 22mm W

1шт.

6

87567449

SNAP RING,M82.6, Ext

1шт.

7

84381199

BUSHING

SPACER SYNCHRO 3-4 SPEEDS

1шт.

8

5162256

NEEDLE BEARING,Needle, 50mm ID x 58mm OD x 25mm W

1шт.

9

73337893

BEARING,55mm ID x 100mm OD x 21mm W

BEARING SKF NJ211 ECP 55X100X21

1шт.

10

11062976

SNAP RING,Int, M100 x 3

1шт.

Выбрано товаров: 10
