Запчасти Case IH FARMALL 110A (21.140.AE[01]) - TRANSMISSION, CREEPER GEAR (21) - TRANSMISSION

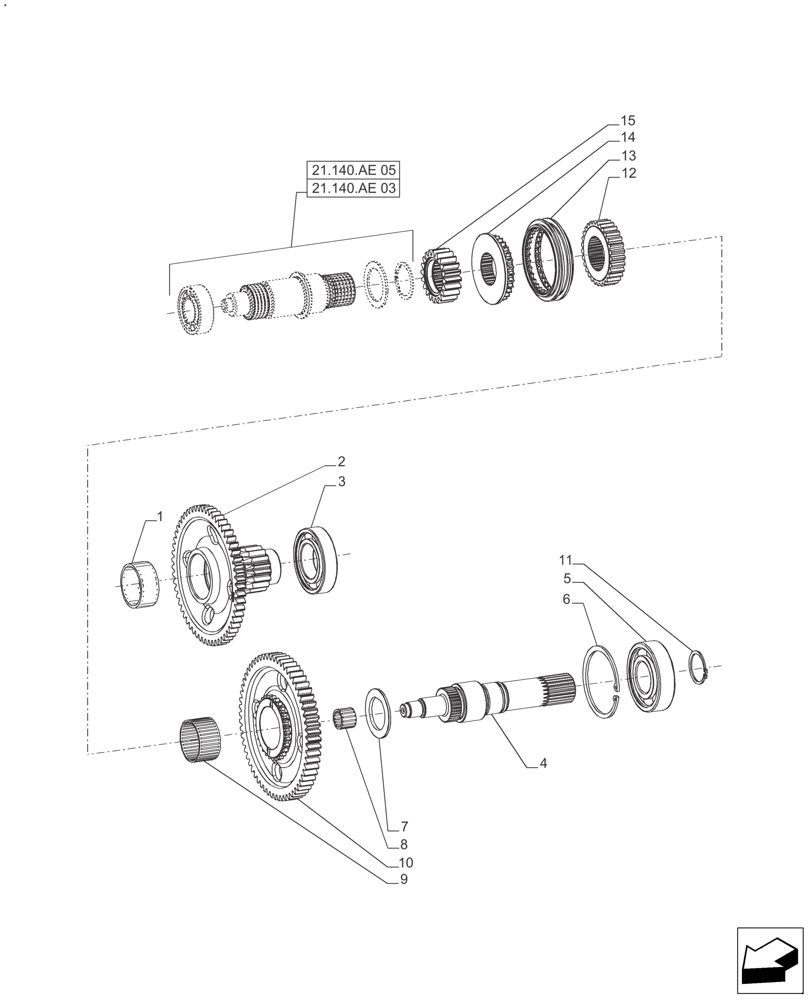

Схема запчастей Case IH FARMALL 110A - (21.140.AE[01]) - TRANSMISSION, CREEPER GEAR (21) - TRANSMISSION
13
6
1
3
10
2
21.140.ae 05
4
14
9
8
12
5
7
21.140.ae 03
15
11

Артикул

Название

Примечание

Количество

1

5162256

NEEDLE BEARING,Needle, 50mm ID x 58mm OD x 25mm W

1шт.

2

84395824

GEAR

Driver Gear Creeper

1шт.

3

ST202

BEARING, BALL,45mm ID x 85mm OD x 19mm W

1шт.

4

84395820

SHAFT

Shaft Transmission Output Creeper

1шт.

5

20943310

BALL BEARING,40mm ID x 90mm OD x 23mm W

1шт.

6

370013

SNAP RING,M90 x 3mm Thk, Internal

1шт.

7

84395822

THRUST WASHER

Thrust Washer Creeper Gear

1шт.

8

84395825

BEARING,20mm ID x 26mm OD x 20mm W

Bearing 20 x 26 x 20

1шт.

9

84395826

BEARING,50mm ID x 55mm OD x 30mm W

Bearing 50 x 55 x 30

1шт.

10

84395819

GEAR

Creeper Output Gear

1шт.

11

370006

SNAP RING,M40, Ext

1шт.

12

84395821

GEAR

Fixed Sleeve Creeper

1шт.

13

47457534

SLEEVE

Slinding Sleeve Creeper

1шт.

13

47714597

SLEEVE

Slinding Sleeve Creeper

1шт.

14

84395818

GEAR

Drive Gear Creeper

1шт.

15

84470911

GEAR

Drive Gear Creeper

1шт.

Выбрано товаров: 16
