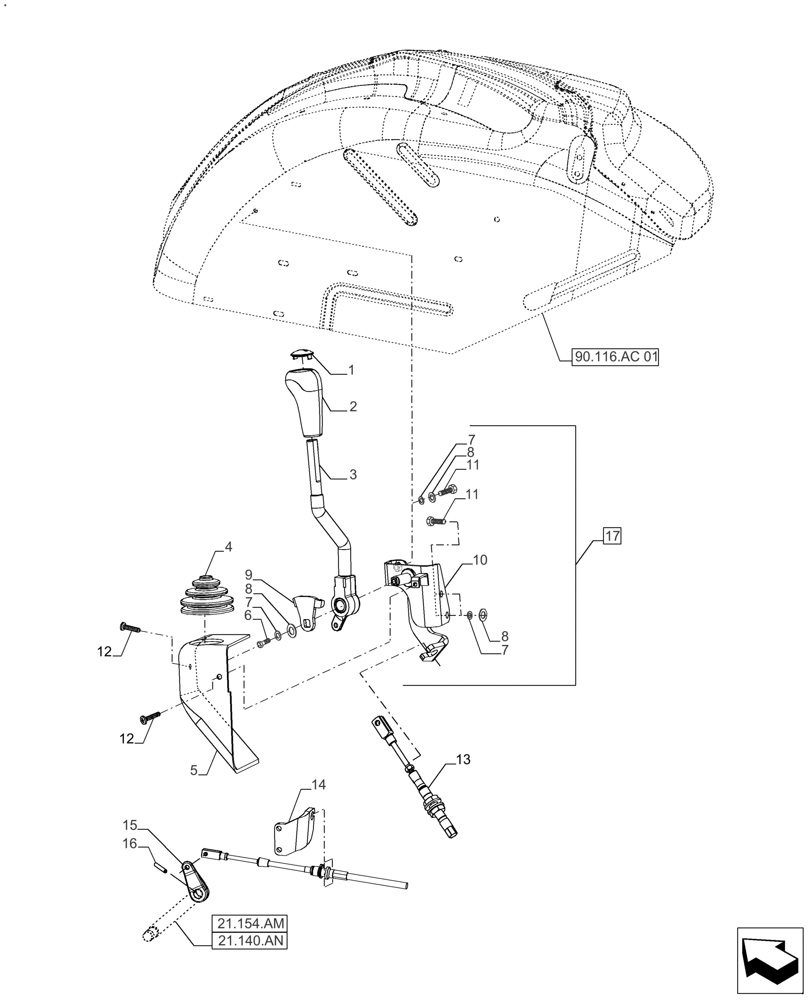

Запчасти Case IH FARMALL 110A (21.130.BC[04]) - RANGE LEVER ASSY & KNOB PLATFORM (21) - TRANSMISSION

1

84210484

SYMBOL

1шт.

2

84210474

KNOB

1шт.

3

73337364

CONTROL LEVER

Lever Range Assy

1шт.

4

84345274

GROMMET

1шт.

5

73337368

COVER

Cover

1шт.

6

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

7

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

4шт.

8

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

9

73337363

LOCKING PLATE

Lock Plate

1шт.

10

73337359

SUPPORT

Support Assy Pivot

1шт.

11

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

3шт.

12

81853129

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 4.8, Full Thd

2шт.

13

47764937

CABLE

Clutch Assy

1шт.

14

73337472

BRACKET

Bracket Cable Range

1шт.

15

73337476

LEVER

Lever Actuator

1шт.

16

13942670

ROLL PIN,M6 x 32, Coiled

1шт.

17

73337358

LEVER

Lever Assy Range Incl 3, 6 - 10

1шт.
