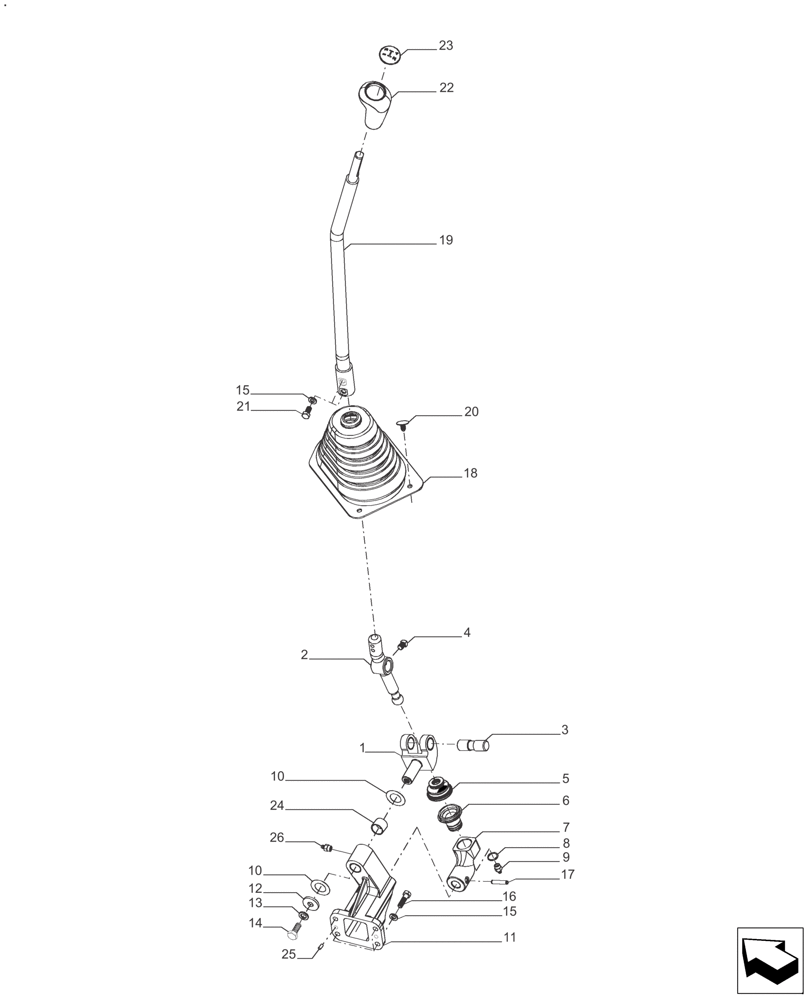

Запчасти Case IH FARMALL 110A (21.130.BC[02]) - CONTROL LEVER MECHANISM INSTALLATION & LATERAL CONTROLS - CAB (21) - TRANSMISSION

1

73337091

YOKE

Assy Transmission Shift Lever

1шт.

2

73337117

CONTROL LEVER

Lower Lever Assy Shift Control

1шт.

3

83955091

SHAFT,18.99mm OD x 57.15mm L

1шт.

4

83984714

SET SCREW,Sq Hd, 3/8"-16 x 1/2", Cup Pt

1шт.

5

82989337

KIT

Kit Dust Boot

1шт.

6

73338314

COVER

Cover

1шт.

7

47724288

ADAPTER

Adapter Shift Lever

1шт.

8

11067471

RING

1шт.

9

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

1шт.

10

82989331

SHIM

2шт.

11

73337050

SUPPORT

Shift Lever

1шт.

12

83904166

WASHER,10.5mm ID x 30mm OD x 4mm Thk

1шт.

13

85700672

LOCK WASHER,M10

1шт.

14

83952638

SCREW,Hex, M10 x 25mm

1шт.

15

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

6шт.

16

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

4шт.

17

13942670

ROLL PIN,M6 x 32, Coiled

1шт.

18

73337227

BELLOWS

Bellows Shift Lever

1шт.

19

73337223

LEVER

Lever Assy Transmission

1шт.

20

83951873

PLUG

4шт.

21

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

22

84210474

KNOB

1шт.

23

84210476

SYMBOL

Speed

1шт.

24

81803339

BRONZE BUSHING

ID 19.063, OD 22.288, THK 14,275 to usage

2шт.

25

82928281

GUIDE PIN

2шт.

26

13408411

LUBE NIPPLE,90 Degree , M10 x1

1шт.
