(21.114.AL[01]) - TRANSMISSION HOUSING 8+8 MECHANICAL

Запчасти Case IH FARMALL 110A (21.114.AL[01]) - TRANSMISSION HOUSING 8+8 MECHANICAL (21) - TRANSMISSION

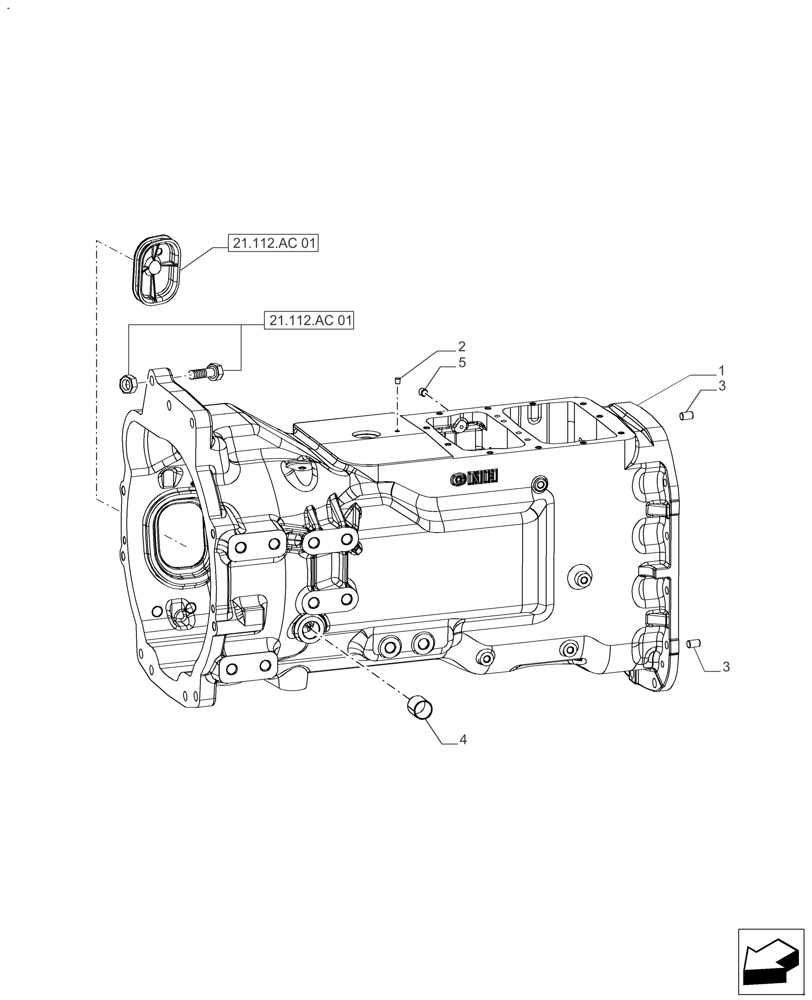

Схема запчастей Case IH FARMALL 110A - (21.114.AL[01]) - TRANSMISSION HOUSING 8+8 MECHANICAL (21) - TRANSMISSION
21.112.ac 01
3
1
2
4
5
3
21.112.ac 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84470902

HOUSING

1шт.

1

47830904

HOUSING

1шт.

2

14536490

PLUG,8.00mm Dia x 15.70mm L

1шт.

3

83980528

DOWEL,12.71mm OD x 20.57mm L

2шт.

4

83924916

BUSHING,28.66mm ID x 34.87mm OD x 31.75mm L

MAIN TRANS SHAFT

1шт.

5

83935647

PLUG,1/4"-18

, Start Year: 28-FEB-14

1шт.
