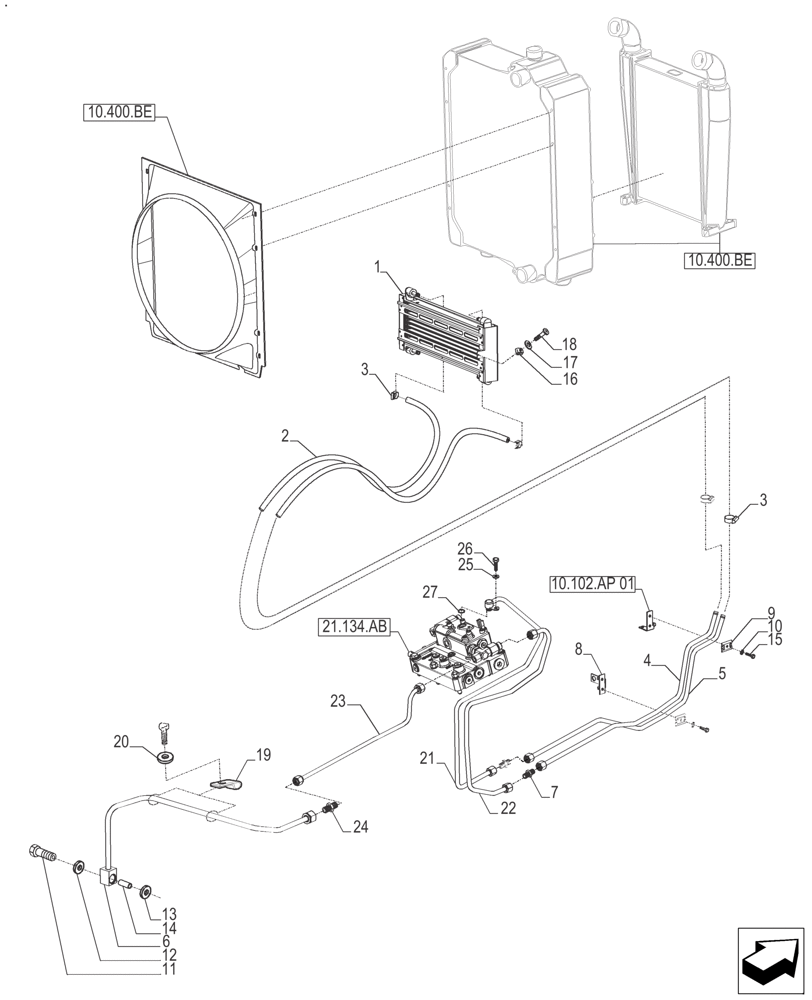

Запчасти Case IH FARMALL 110A (21.109.AD[02]) - COOLING SYSTEM - OIL - POWER SHUTTLE (21) - TRANSMISSION

1

82033781

OIL COOLER

Assy.

1шт.

2

82989381

HOSE,12.7mm ID x 1350mm L

Hose, ,Oil Cooler (Cab)

2шт.

3

82039346

HOSE CLAMP,30mm - 45mm, Worm Gear

Clamp

4шт.

4

73336439

HYD TUBE

Assy, Inlet 4 Cyl.

1шт.

4

73336724

HYD TUBE

Oil Cooler Up Assy. 6 Cyl.

1шт.

5

73336442

HYD TUBE

Assy, Outlet 4 Cyl.

1шт.

5

73336727

HYD TUBE

Oil Cooler LO Assy. 6 Cyl.

1шт.

6

73336454

HYD TUBE

Assy, Cooler, Outlet

1шт.

7

82982603

HYD CONNECTOR,13/16"-16

Metric Assy,

2шт.

8

82988461

SUPPORT

Side Support Assy. Steering Tubes

1шт.

9

81803118

CLAMP

Clamp

2шт.

10

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

2шт.

11

81879036

BANJO BOLT,9/16" - 18 x 1.34"

Tube Adaptor

1шт.

12

83900079

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

1шт.

13

82895354

SEAL,13.82mm ID x 19.4mm OD x 2.59mm Thk

Seal

1шт.

14

81879012

PLASTIC-RUBBER TUBE,7.83 mm ID, 9.5 mm OD, 22 mm Length

1шт.

15

10902824

BOLT,Hex, M6 x 30mm, Cl 8.8

2шт.

16

83905205

NUT,#8-18

Captive

1шт.

17

83902856

WASHER,#8, 3/16" x 3/8" x .05" Thk

(5 x 11 x 1.3 mm), Stl.

1шт.

18

83932727

SELF-TAP SCREW,#8-18 x .62"

Pan Hd

1шт.

19

86639010

CLAMP,9.5mm, Coat, 13.5mm Bolt Hole, P Type

Wraparound

2шт.

20

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

21

73336445

HYD TUBE

TUBE, OIL COOLER IN ASSY

1шт.

22

73336448

HYD TUBE

TUBE, OIL COOLER OUT ASSY

1шт.

23

73338512

HYD TUBE

TUBE, LUBRICANT FR ASSY

1шт.

24

84431472

HYD CONNECTOR,13/16"-16 ORFS x 11/16"-16 ORFS

1шт.

25

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

1шт.

26

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

27

86637641

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

1шт.
