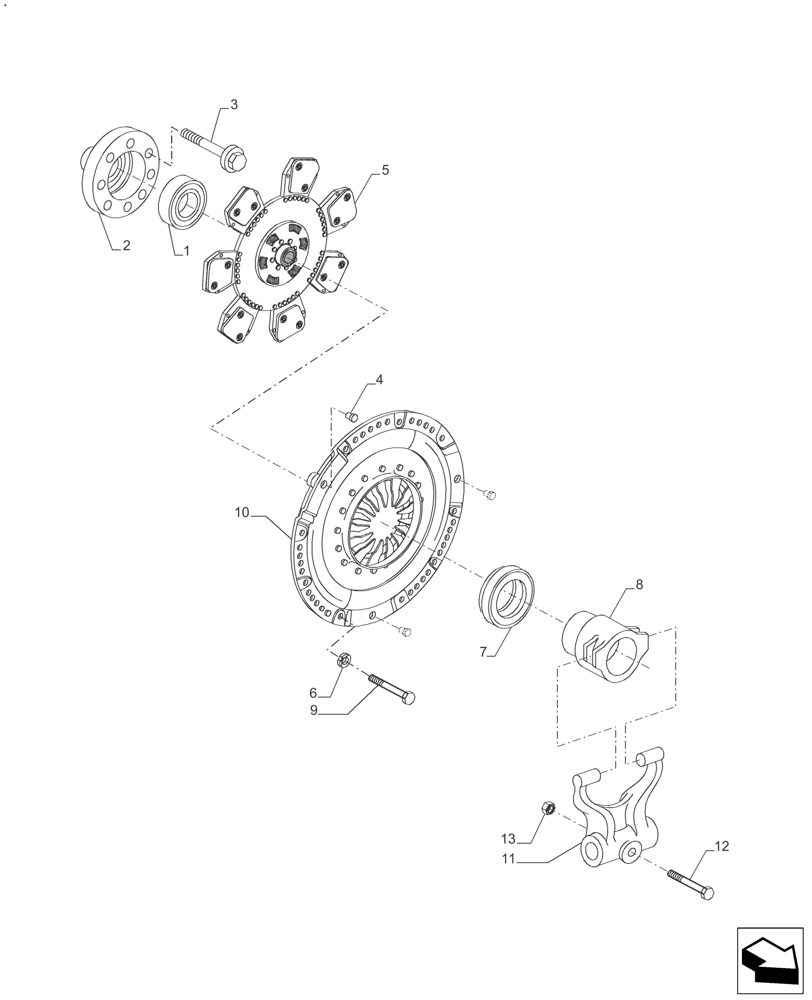

Запчасти Case IH FARMALL 110A (18.110.AB[01]) - CLUTCH - ASSY MECHANICAL 8+8 (18) - CLUTCH

1

73403513

BALL BEARING,36.51mm ID x 68mm OD x 19mm W

Bearing, Drive Plate

1шт.

2

82989933

ADAPTER

Flywheel Adapter

1шт.

3

15541131

SCREW,Hex, M12 x 1.25 x 65mm, Cl 10.9

8шт.

4

82983577

DOWEL,M8 x 22

Pin

3шт.

5

73337468

CLUTCH DISC

Disc Assy. Clutch Cerametalic Luk 14 W/Damper

1шт.

Use Grease 73337946

1шт.

5

73337468R

REMAN-CLUTCH DISC

Disc Assy. Clutch Cerametalic Luk 14 W/Damper

1шт.

5

73337468C

CORE-CLUTCH DISC

Return Number

1шт.

6

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

9шт.

7

83933520

BEARING ASSY

Clutch Release

1шт.

8

83992559

HUB

Hub, Clutch Release, Bearing

1шт.

9

82880843

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

9шт.

10

82983566

CLUTCH HOUSING

Cover Assy. Luk 14

1шт.

10

82983566R

REMAN-CLUTCH PLATE

Reman for New PN 82983566

1шт.

10

82983566C

CORE-CLUTCH PLATE

Return Number

1шт.

11

83959190

FORK

Fork, Clutch Release Shaft

1шт.

12

81866741

BOLT,3/8" - 16 x 54mm, Gr 8

Clutch Shaft

1шт.

13

83959187

LOCK NUT,3/8"-16

P/T

1шт.
