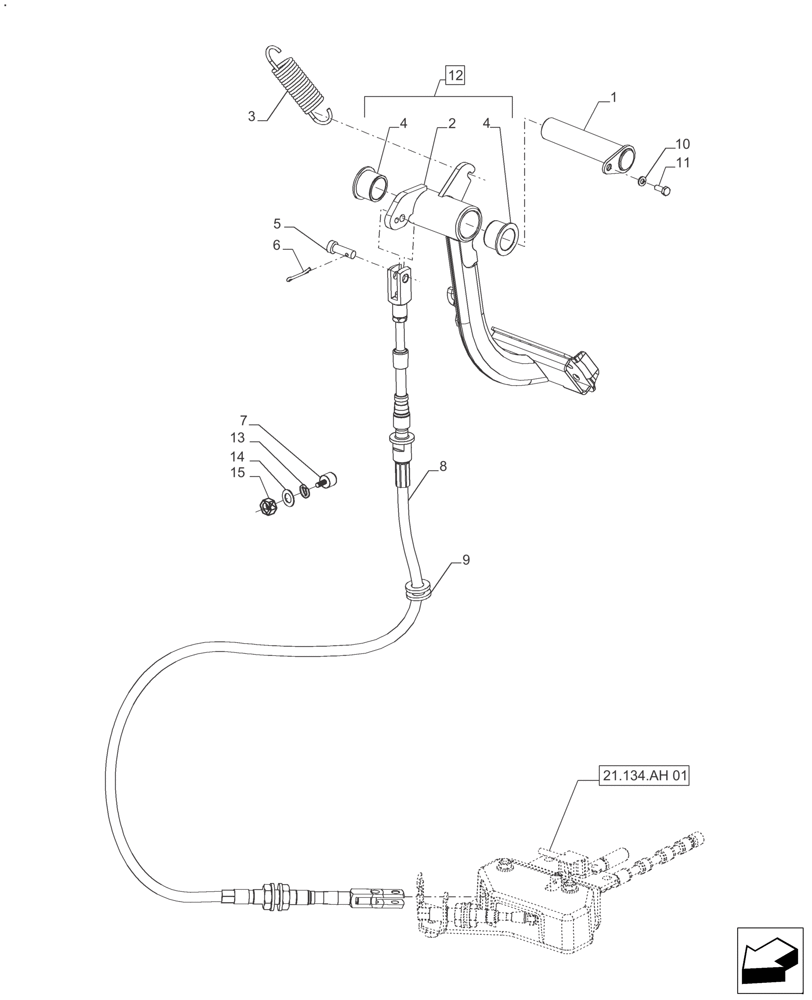

Запчасти Case IH FARMALL 110A (18.104.AF) - CLUTCH, PEDAL, HYDRAULIC LIFT, CAB (18) - CLUTCH

1

5097582

SHAFT

1шт.

2

NSS

NOT SOLD SEPARAT

Pedal Assy Clutch, Incl in 12

1шт.

3

81820056

SPRING

1шт.

4

5097550

BUSHING,25.4mm ID x 38mm OD x 22mm L

2шт.

5

9672307

CLEVIS PIN,1/4" x 3/4"

1шт.

6

85700711

COTTER PIN,3/32" x 1"

1шт.

7

5115768

STOP

1шт.

8

47764937

CABLE

Assy Clutch

1шт.

9

5093911

GROMMET

1шт.

10

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

1шт.

11

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

1шт.

12

73338298

PEDAL

Pedal and Bushing Assy, Incl 2, 4

1шт.

13

82936477

LOCK WASHER,#10

1шт.

14

81838650

WASHER,5.3mm ID x 15mm OD x 2mm Thk

1шт.

15

81838649

NUT,M5

M5

1шт.
