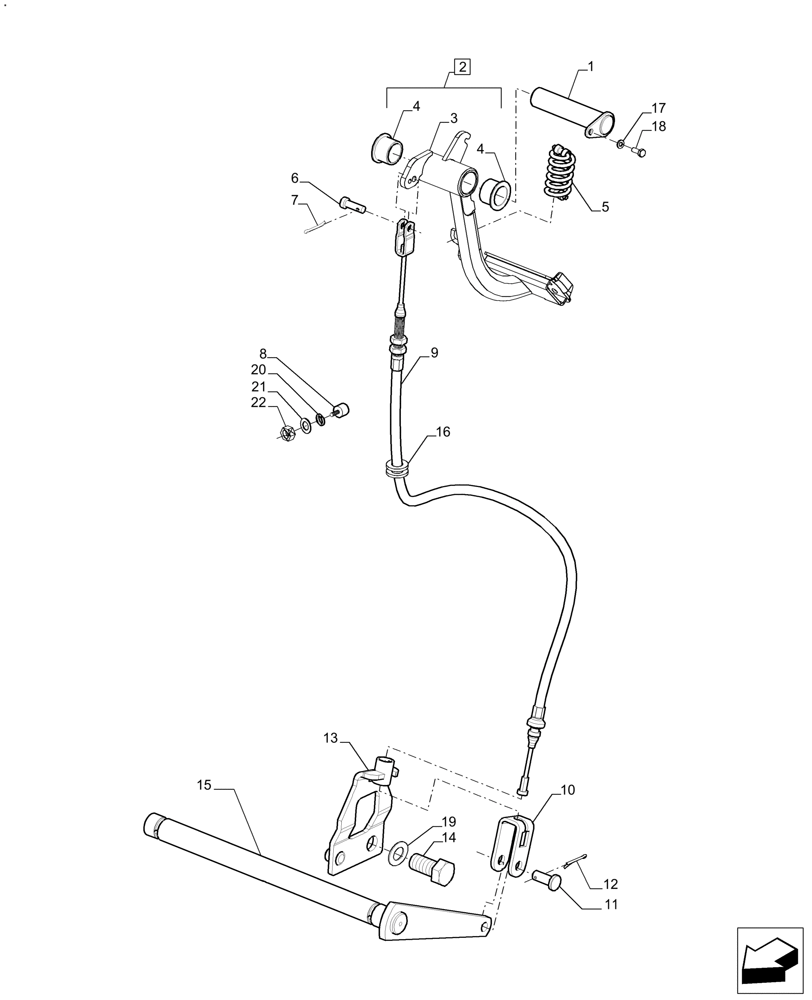

Запчасти Case IH FARMALL 110A (18.100.AF[03]) - CLUTCH, PEDAL, MECHANICAL, CAB (18) - CLUTCH

1

5097582

SHAFT

1шт.

2

73338298

PEDAL

Pedal and Bushing Assy, Incl 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

Pedal Assy, Clutch, Incl in 2

1шт.

4

5097550

BUSHING,25.4mm ID x 38mm OD x 22mm L

2шт.

5

81820895

SPRING

1шт.

6

385818

CLEVIS PIN,M8 x 20

1шт.

7

85700711

COTTER PIN,3/32" x 1"

2шт.

8

5115768

STOP

1шт.

9

47776606

CABLE

1шт.

10

73335844

CLEVIS

Clevis Clutch Cable

1шт.

11

83948842

CLEVIS PIN,7/16" x 1 1/4"

1шт.

12

80756

COTTER PIN,1/8" x 3/4"

1шт.

13

73335840

SUPPORT

Support Assy, Clutch Cable

1шт.

14

86624002

BOLT,Hex, M20 x 40mm, Cl 8.8

1шт.

15

47917945

SHAFT

ASSY, Clutch Release

1шт.

16

5093911

GROMMET

1шт.

17

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

1шт.

18

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

1шт.

19

10572379

WASHER,M20.2 x 33.6 x 6 Thk, HT

1шт.

20

82936477

LOCK WASHER,#10

1шт.

21

81838650

WASHER,5.3mm ID x 15mm OD x 2mm Thk

1шт.

22

81838649

NUT,M5

1шт.
