Запчасти Case IH FARMALL 110A (18.100.AF[02]) - CLUTCH - CONTROLS ROPS - MECHANICAL (18) - CLUTCH

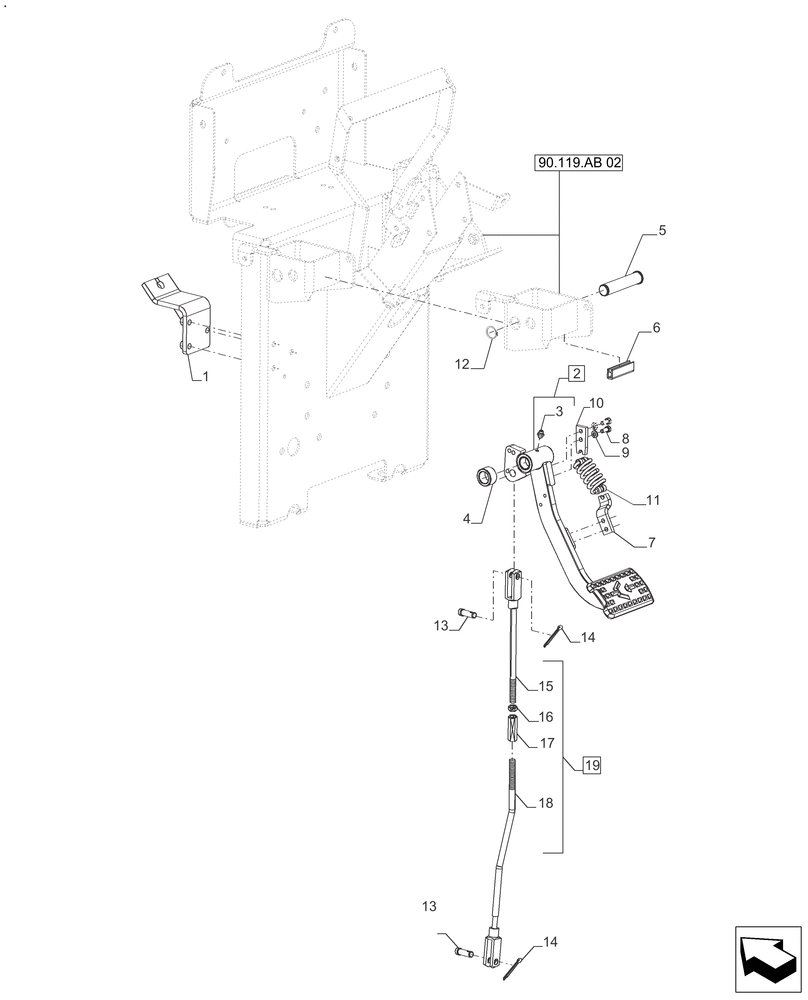

Схема запчастей Case IH FARMALL 110A - (18.100.AF[02]) - CLUTCH - CONTROLS ROPS - MECHANICAL (18) - CLUTCH
4
18
8
90.119.ab 02
14
1
5
10
2
12
9
13
14
13
11
3
19
17
7
6
15
16

Артикул

Название

Примечание

Количество

1

73337510

SUPPORT

Support Assy. Cable Clutch

1шт.

2

47899129

PEDAL

Pedal Assy., Clutch, Incl 3

1шт.

3

83416243

LUBE NIPPLE,1/4"-28 x .54" L

1шт.

4

83935737

SPACER,20.09mm ID x 30.02mm OD x 17mm L

Bushing

1шт.

5

82988592

SHAFT

Shaft Clutch Pedal

1шт.

6

82983695

GROMMET

1шт.

7

82988588

BRACKET, SUPPORTING

Support Pedal Clutch Spring

1шт.

8

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

2шт.

9

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

2шт.

10

81870229

RETAINER

Support Clutch Spring

1шт.

11

81820895

SPRING

Spring Assy. Clutch Pedal

1шт.

12

81822229

SNAP RING,#75, 3/4", Ext

1шт.

13

10033511

PIN,12mm OD x 32mm L

2шт.

14

83415765

COTTER PIN,1/8" x 3/4"

2шт.

15

73336295

ROD

Upper Rod Assy. Clutch Pedal

1шт.

16

408

NUT,5/8" - 18, Gr 5

1шт.

17

NSS

NOT SOLD SEPARAT

Sleeve-Clutch Rod Adjustment, Incl in 19

1шт.

18

NSS

NOT SOLD SEPARAT

Clutch Rod Assy. Lower, Incl in 19

1шт.

19

73337045

ROD

Rod Assy. Clutch, Incl 15 - 18

1шт.

Выбрано товаров: 19
