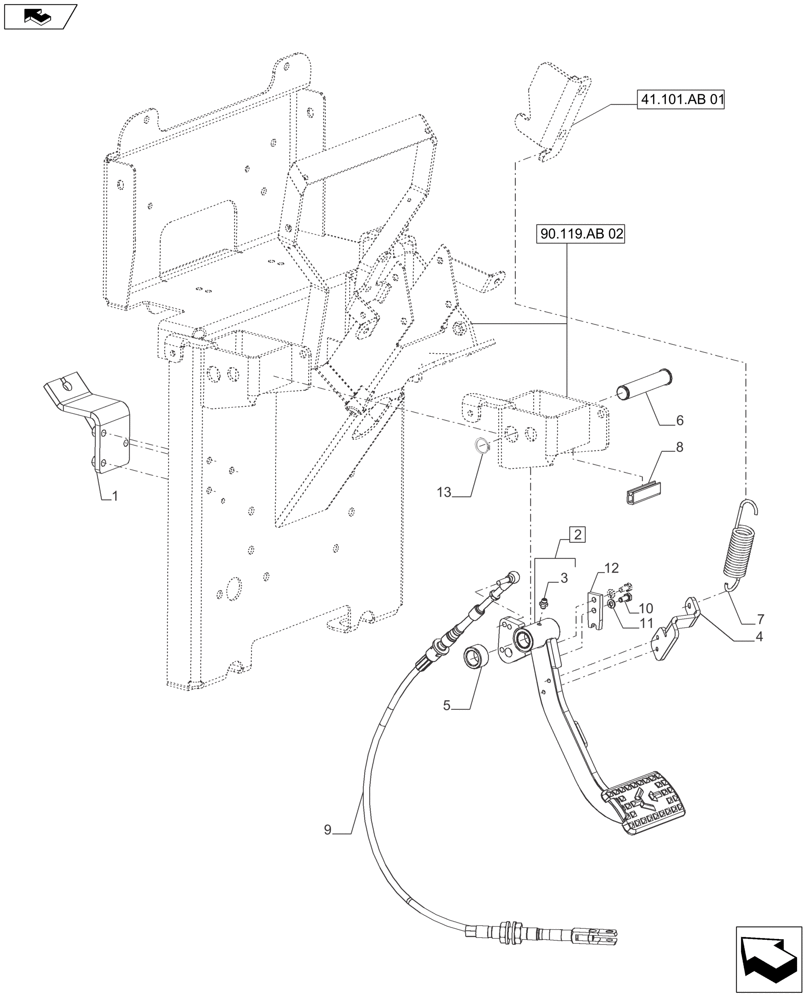

Запчасти Case IH FARMALL 110A (18.100.AF[01]) - CLUTCH, CONTROLS, ROPS, HYDRAULIC LIFT (18) - CLUTCH

1

73337510

SUPPORT

Support Assy. cable Clutch

1шт.

2

47899129

PEDAL

Pedal Assy., Clutch, Incl 3

1шт.

3

83416243

LUBE NIPPLE,1/4"-28 x .54" L

1шт.

4

73338609

SUPPORT

Support

1шт.

5

83935737

SPACER,20.09mm ID x 30.02mm OD x 17mm L

Bushing

1шт.

6

82988592

SHAFT

Shaft Clutch Pedal

1шт.

7

81820056

SPRING

1шт.

8

82983695

GROMMET

1шт.

9

47764936

CABLE

Clutch Assy.

1шт.

10

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

2шт.

11

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

2шт.

12

81870229

RETAINER

Support Clutch Spring

1шт.

13

81822229

SNAP RING,#75, 3/4", Ext

1шт.
