Запчасти Case IH FARMALL 110A (10.414.AD[01]) - BELT PULLEY DRIVE & COVER-MEXICO (10) - ENGINE

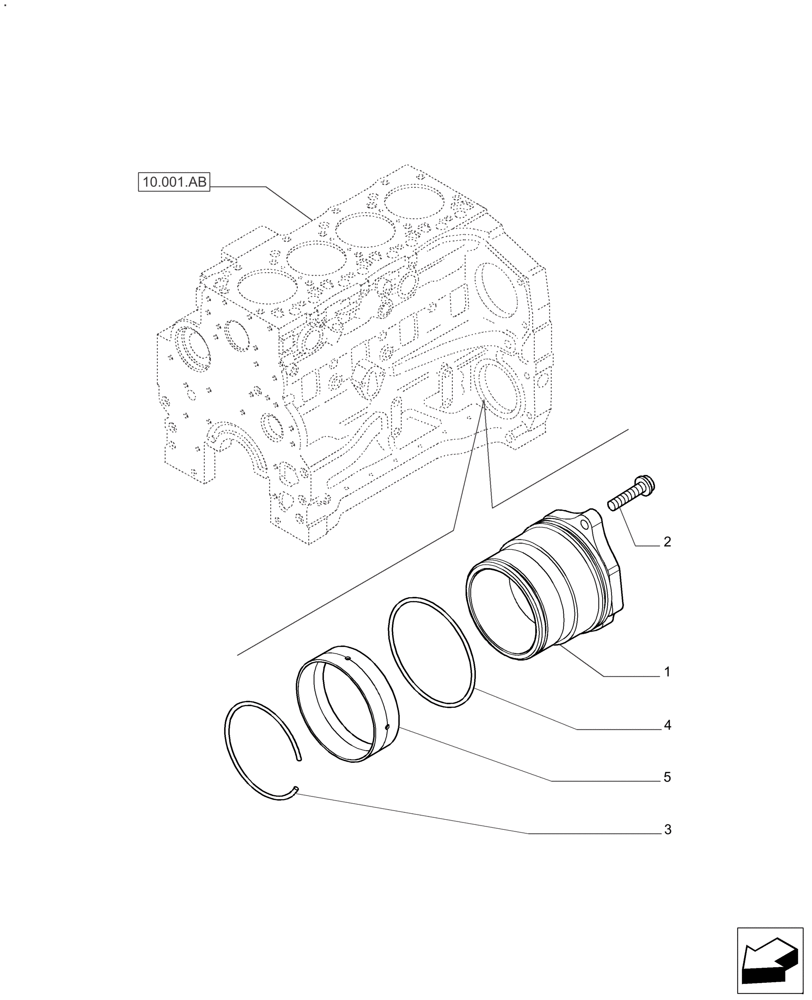

Схема запчастей Case IH FARMALL 110A - (10.414.AD[01]) - BELT PULLEY DRIVE & COVER-MEXICO (10) - ENGINE
5
2
3
4
1
10.001.ab

Артикул

Название

Примечание

Количество

1

2853045

ADAPTER

HYD. PUMP FARMALL 110A,120A,125A

1шт.

1

504087882

ADAPTER HYD. PUMP FARMALL140A

1шт.

2

18771924

BOLT

SCREW Hex. Flg. Head FARMALL110A,120A,125A

1шт.

3

2831392

SNAP RING,M97

Retaining FARMALL 110A,120A,125A

1шт.

4

4897110

O-RING,0.139" Thk x 3.859" ID, -241

1шт.

5

504083473

ADAPTER

SPACER MOUNTING FARMALL 110A,120A,125A

1шт.

5

2853836

SPACER,102.5mm ID x 107.5mm OD x 13mm L

MOUNTING FARMALL 140A

1шт.

Выбрано товаров: 7
