(10.408.AC) - HEAT EXCHANGER - ENGINE

Запчасти Case IH FARMALL 110A (10.408.AC) - HEAT EXCHANGER - ENGINE (10) - ENGINE

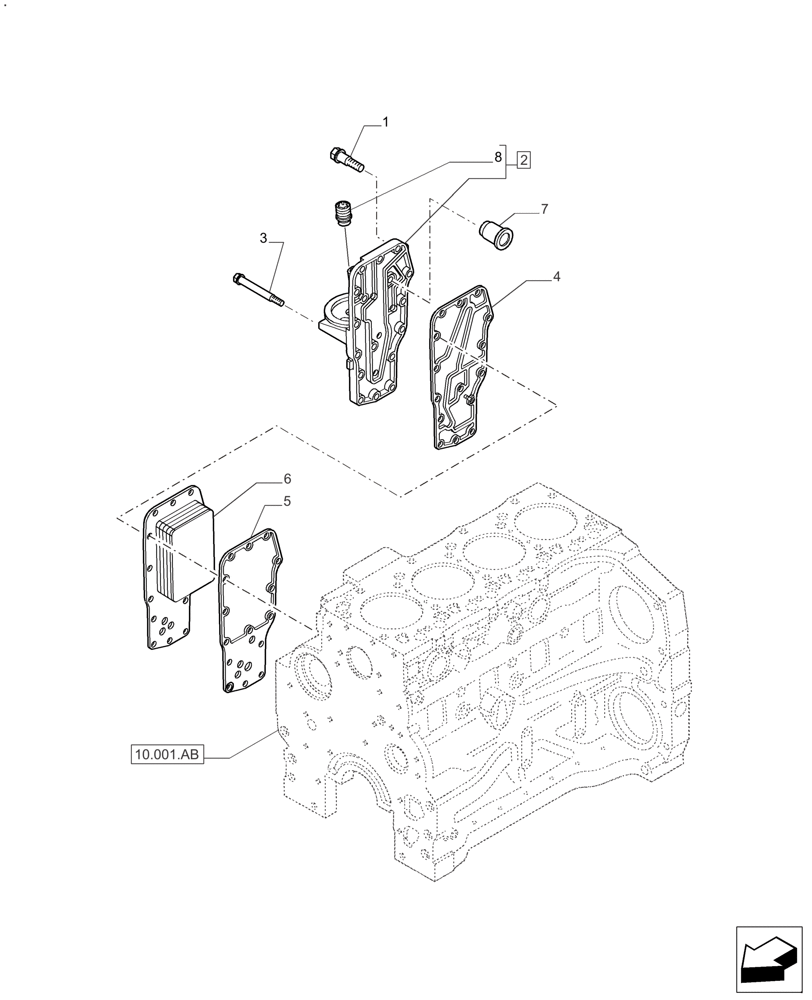

Схема запчастей Case IH FARMALL 110A - (10.408.AC) - HEAT EXCHANGER - ENGINE (10) - ENGINE
2
5
1
7
3
4
6
10.001.ab
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

4899019

SCREW,Hex Flg, M8 x 1.25 x 35

13шт.

2

2830675

FILTER HEAD

Oil, Incl 8

1шт.

3

4895609

BOLT,Flng, M8 x 1.25 x 100mm

2шт.

4

2831317

GASKET,0.9mm Thk

Oil Cooler

1шт.

5

2830559

GASKET,0.5mm Thk

Oil Cooler Core

1шт.

6

2853722

HEAT EXCHANGER

1шт.

7

J936365

VALVE PRESSURE RELIE

1шт.

8

J936365

VALVE PRESSURE RELIE

Filter Hd

1шт.
