Запчасти Case IH FARMALL 110A (10.304.AC) - OIL PUMP - ENGINE (10) - ENGINE

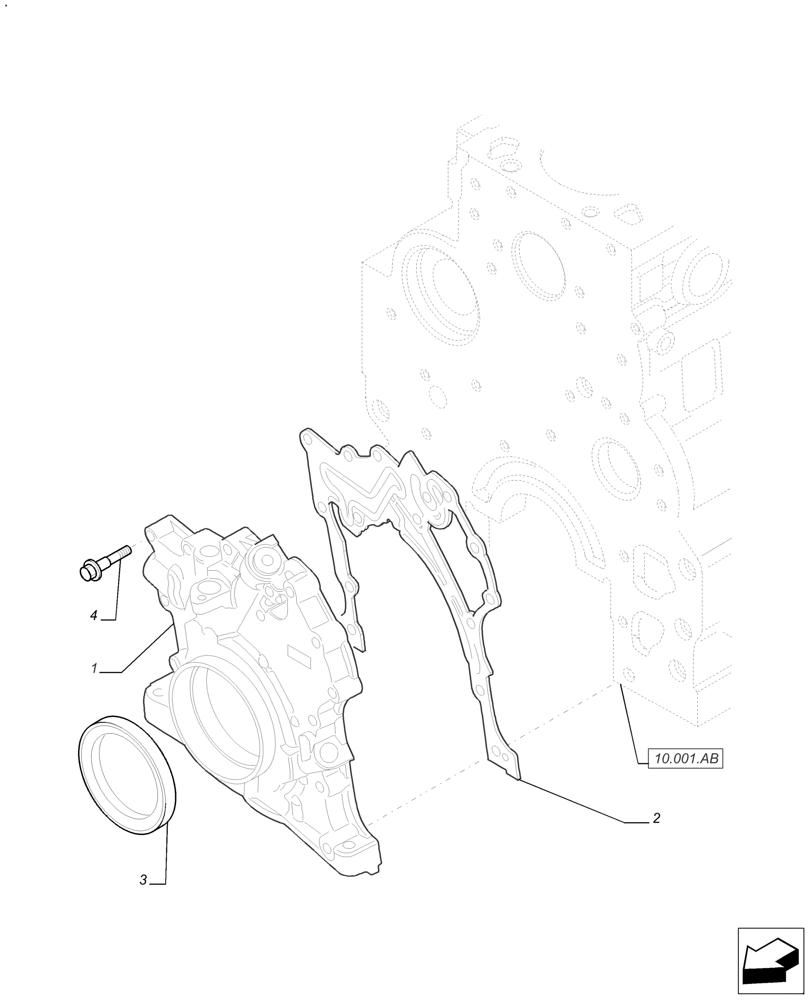

Схема запчастей Case IH FARMALL 110A - (10.304.AC) - OIL PUMP - ENGINE (10) - ENGINE
10.001.ab
2
1
3
4

Артикул

Название

Примечание

Количество

1

2830913

ENGINE OIL PUMP

Front Cover Retaining

1шт.

1

2830913R

REMAN-ENG OIL PUMP

1шт.

1

2830913C

CORE-ENGINE OIL PUMP

Return Number

1шт.

2

2830972

GASKET,2.3mm Thk

Oil Pump

1шт.

3

4890832

OIL SEAL,M70 x 100 x 12.5/16

1шт.

4

4899019

SCREW,Hex Flg, M8 x 1.25 x 35

13шт.

4

4899089

SCREW,Hex Flg, M8 x 1.25 x 50

2шт.

4

4899031

BOLT,Flng, M8 x 1.25 x 25mm

2шт.

Выбрано товаров: 8
