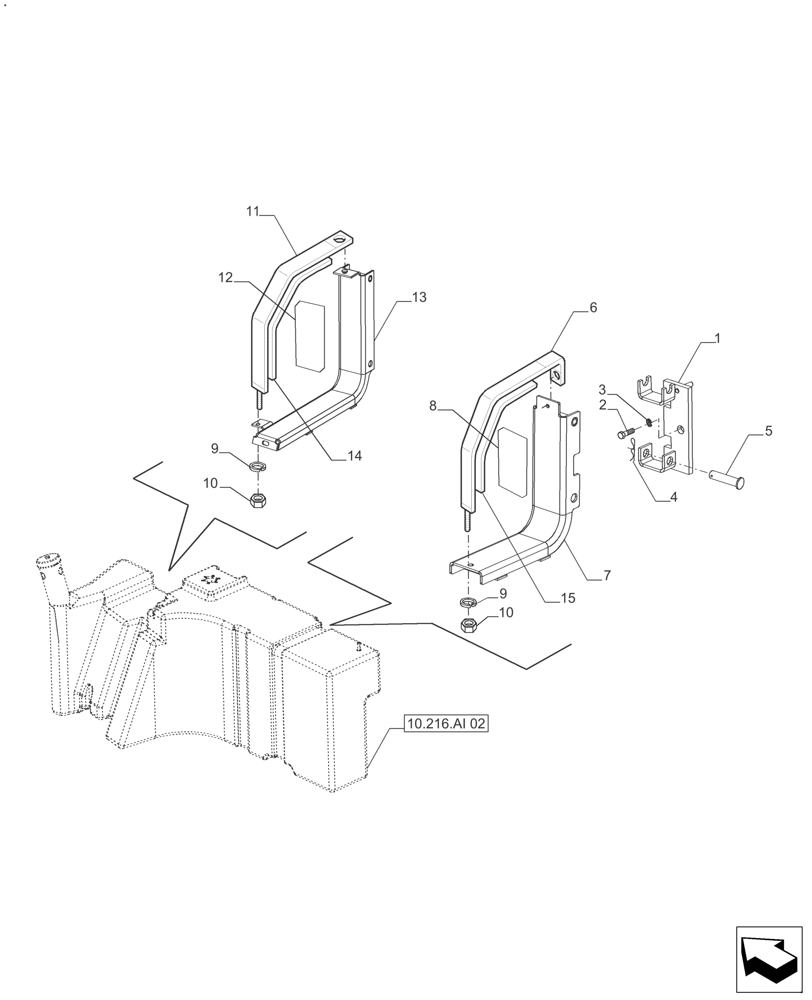

Запчасти Case IH FARMALL 110A (10.216.AI[03]) - FUEL TANK, SUPPORT 4 CYL. (10) - ENGINE

1

73337040

CHANNEL

Support Assy

1шт.

2

83904573

BOLT,Hex, 3/4" - 16 x 1.25"

1шт.

3

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

1шт.

4

83917618

COTTER PIN,1/8" x 2 5/16"

2шт.

5

82011818

CLEVIS PIN,M19 x 107

2шт.

6

82989215

STRAP

Strap & Pad Assy. Fuel Tank Support Rear

1шт.

7

73337777

SUPPORT

Assy Rear Tank

1шт.

8

73335709

PAD

Pad Fuel Tank Support Rear

1шт.

9

85700672

LOCK WASHER,M10

2шт.

10

82879516

NUT,M10, G8

2шт.

11

82989216

STRAP

Strap & Pad Assy. Fuel Tank Support Front , Years: -16-NOV-12

1шт.

11

73338686

STRAP

FR Assy.- Tank, Start Year: 16-NOV-12

1шт.

12

73335710

RUBBER PAD

Front Pad

1шт.

13

73337966

SUPPORT

FR Assy, Fuel Tank

1шт.

14

82989105

RUBBER PAD

Front

1шт.

15

82989106

RUBBER PAD

Rear

1шт.
