Запчасти Case IH FARMALL 110A (10.216.AI[02]) - FUEL SYSTEM INJECTOR - ENGINE (10) - ENGINE

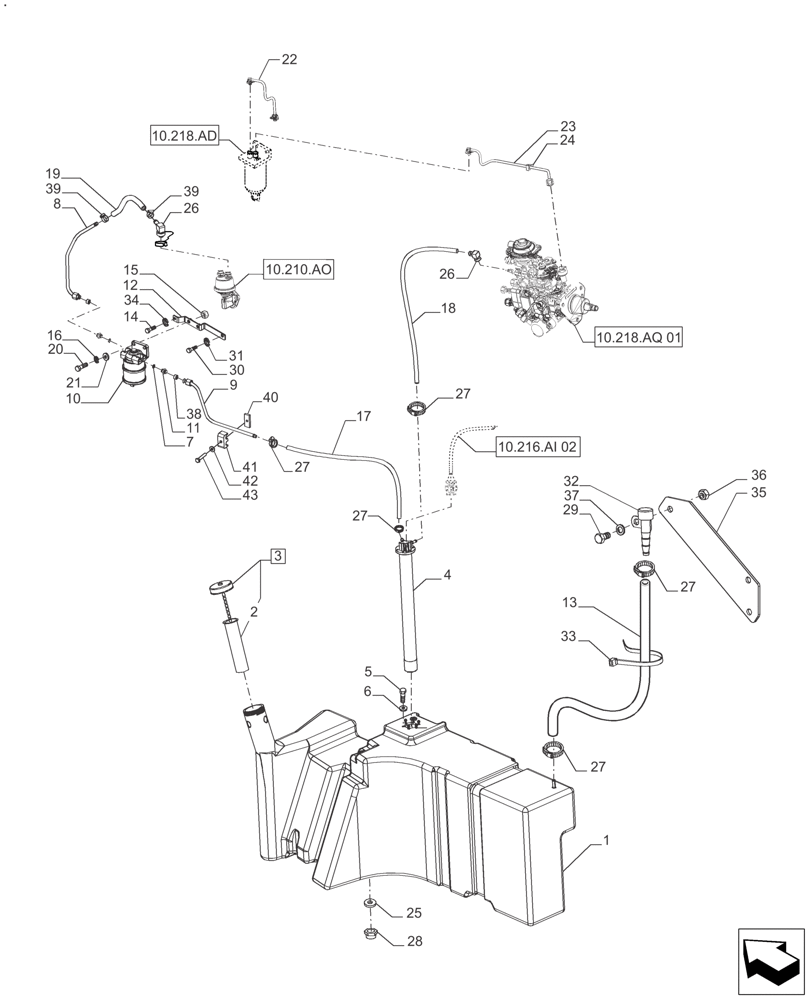

Схема запчастей Case IH FARMALL 110A - (10.216.AI[02]) - FUEL SYSTEM INJECTOR - ENGINE (10) - ENGINE
40
16
11
10
29
5
20
10.218.aq 01
33
28
42
2
27
8
39
27
15
19
43
27
6
9
7
26
32
25
13
35
37
12
26
36
10.210.ao
39
3
22
14
21
41
27
38
34
1
24
23
31
27
30
18
10.218.ad
17
10.216.ai 02
4

Артикул

Название

Примечание

Количество

1

73337120

FUEL TANK

ASSY 4 CYL

1шт.

1

73336695

FUEL TANK

ASSY 6 Cyl.

1шт.

2

NSS

NOT SOLD SEPARAT

Filter Fuel Tank 4/6 Cyl. Incl in 3

1шт.

3

47444988

CAP

CAP FUEL NON LOCKABLE, TANK 4/6 Cyl. Incl 2, Start Year: 08-MAR-13

1шт.

4

47951056

SENDER UNIT

FUEL LEVER 4/6 Cyl.

1шт.

5

120098

BOLT,Hex, M5 x 20, 8.8, Full Thd

6шт.

6

82936477

LOCK WASHER,#10

6шт.

7

82981952

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

(9.53 mm x 1.78 mm) (Seal)

2шт.

8

73335104

FUEL TUBE

Assy, Tramp Water to Pump

1шт.

9

73335107

FUEL TUBE

Assy, Tank to Tramp Water

1шт.

10

82988638

WATER SEPARATOR

Tramp

1шт.

11

83947824

FITTING,9/16"-24 x 1/2"-20 O-Ring

Connector Tramp Water

2шт.

12

73335445

SUPPORT

Tramp Water 4 Cyl.

1шт.

12

73336698

SUPPORT

Tramp Water 6 Cyl.

1шт.

13

73336703

HOSE,9.1mm ID x 1370mm L, SAE 30R6

Breather 4/6 Cyl.

1шт.

14

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

15

43362

NUT,M8 x 1.25, Cl 10

2шт.

16

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

2шт.

17

73336701

HOSE,9.9mm ID x 1090mm L, SAE 30R6

Hose Suction to Fuel Tank 4/6 Cyl.

1шт.

18

82988641

FUEL HOSE

Return. 4/6 Cyl.

1шт.

19

82988639

FUEL HOSE

Sediment to Fuel Pump, 4 Cyl.

1шт.

19

47608999

HOSE

Fuel Hose, 6 Cyl., Start Year: 04-APR-14

1шт.

20

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

2шт.

21

83933065

WASHER

10 Flat Stl.

2шт.

22

2830473

TUBE

Assy, Water Tramp to Filter

1шт.

23

2830480

INJECTION PIPE

Tube Assy. Filter to Pump 4 Cyl.

1шт.

23

2830470

INJECTION PIPE

Tube Assy. Filter to Pump 6 Cyl.

1шт.

24

2852111

CLIP

1шт.

25

82992174

O-RING,15.7mm ID x 3.5mm Width

1шт.

26

87400460

90 ELBOW

2шт.

27

47608922

Clamp 11 - 17

4шт.

28

82989356

DRAIN PLUG

1шт.

29

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4/6 Cyl.

1шт.

30

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

1шт.

31

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

32

5153270

BREATHER

1шт.

33

83933061

STRAP

3шт.

34

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

1шт.

35

73338166

SUPPORT

Breather (with Cab) 4/6 Cyl.

1шт.

36

43362

NUT,M8 x 1.25, Cl 10

1шт.

37

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4/6 Cyl.

1шт.

38

82989149

SPACER

Spacer 0.28 x 0.48 x 0.25

2шт.

39

82875741

HOSE CLAMP,1/4" - 5/8"

2шт.

40

83935165

PLATE

1шт.

41

83947302

CLAMP

1шт.

42

83926806

WASHER,1/4", SAE

1шт.

43

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

1шт.

Выбрано товаров: 47
