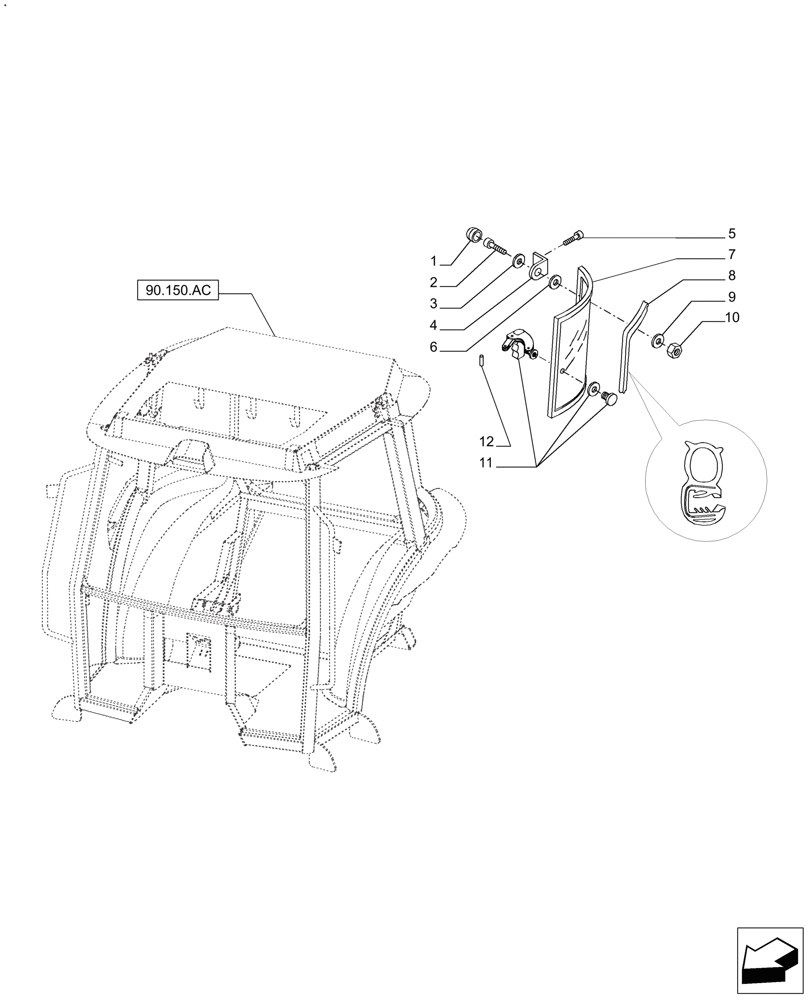

Запчасти Case IH FARMALL 110A (90.456.AZ) - CAB SIDE GLASS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

5089481

CAP,17mm OD

8шт.

2

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

6шт.

3

11194079

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.9mm Thk

6шт.

4

5089560

BRACKET

4шт.

5

15901601

SCREW,M4 x 16mm

8шт.

6

5094375

WASHER,8mm ID x 32.2mm OD x 3.9mm Thk

6шт.

7

5089556

CAB GLASS

RH

1шт.

7

5089600

CAB GLASS

LH

1шт.

8

87679907

SEAL, GLASS,2638mm L

2шт.

9

5094140

WASHER,19mm ID x 39mm OD x 4mm Thk

8шт.

10

5094141

NUT,Spheric, M8

8шт.

11

5096473

HANDLE

RH

1шт.

11

5096474

HANDLE

LH

1шт.

12

5094380

COTTER PIN

2шт.
