Запчасти Case IH FARMALL 110A (90.160.CD[02]) - TRIM PANEL - FRONT - W/CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

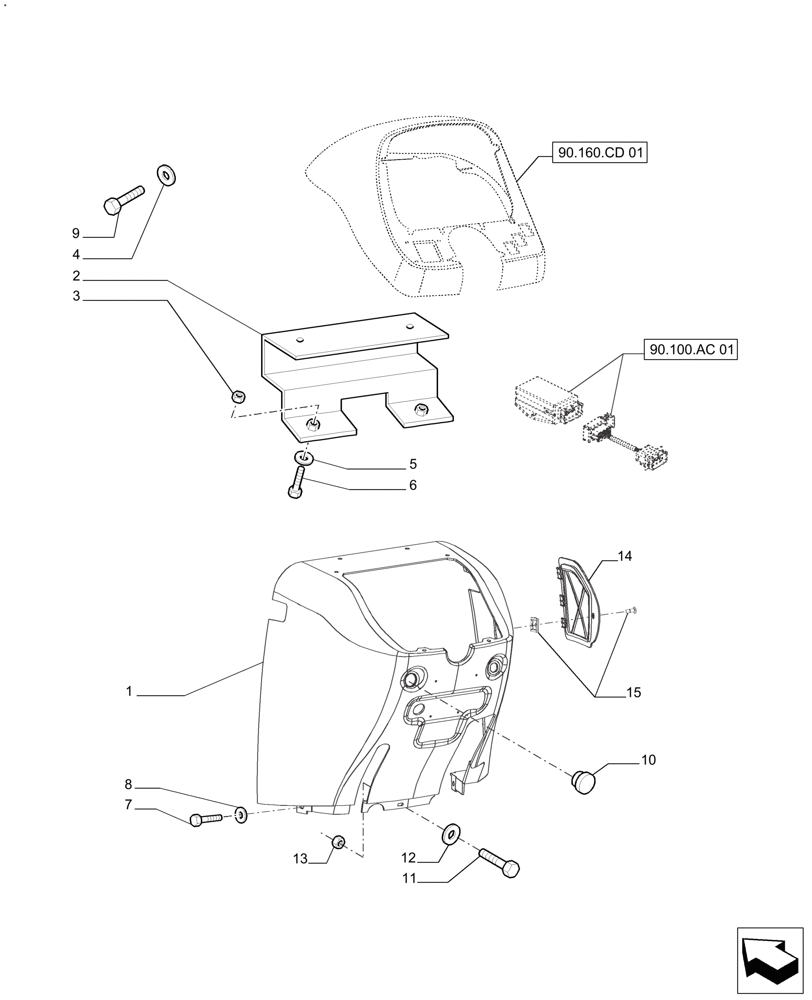

Схема запчастей Case IH FARMALL 110A - (90.160.CD[02]) - TRIM PANEL - FRONT - W/CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
8
6
1
5
3
14
12
90.160.cd 01
10
15
4
2
13
90.100.ac 01
9
7
11

Артикул

Название

Примечание

Количество

1

84236285

Rear Hood

1шт.

2

5090447

BRACKET

1шт.

3

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

2шт.

4

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

1шт.

5

11194079

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.9mm Thk

2шт.

6

14238130

SCREW,M8

M8 x 27

2шт.

7

15970521

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

8

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

2шт.

9

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.

10

5146608

PLUG

D=22.5

1шт.

11

16043321

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.

12

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

1шт.

13

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

1шт.

14

84242163

SEPARATOR HOOD

1шт.

15

5174673

FASTENER,12mm OD

Rear Hood Quick Release

1шт.

Выбрано товаров: 15
