(90.160.CD[01]) - TRIM PANEL - FRONT

Запчасти Case IH FARMALL 110A (90.160.CD[01]) - TRIM PANEL - FRONT (90) - PLATFORM, CAB, BODYWORK AND DECALS

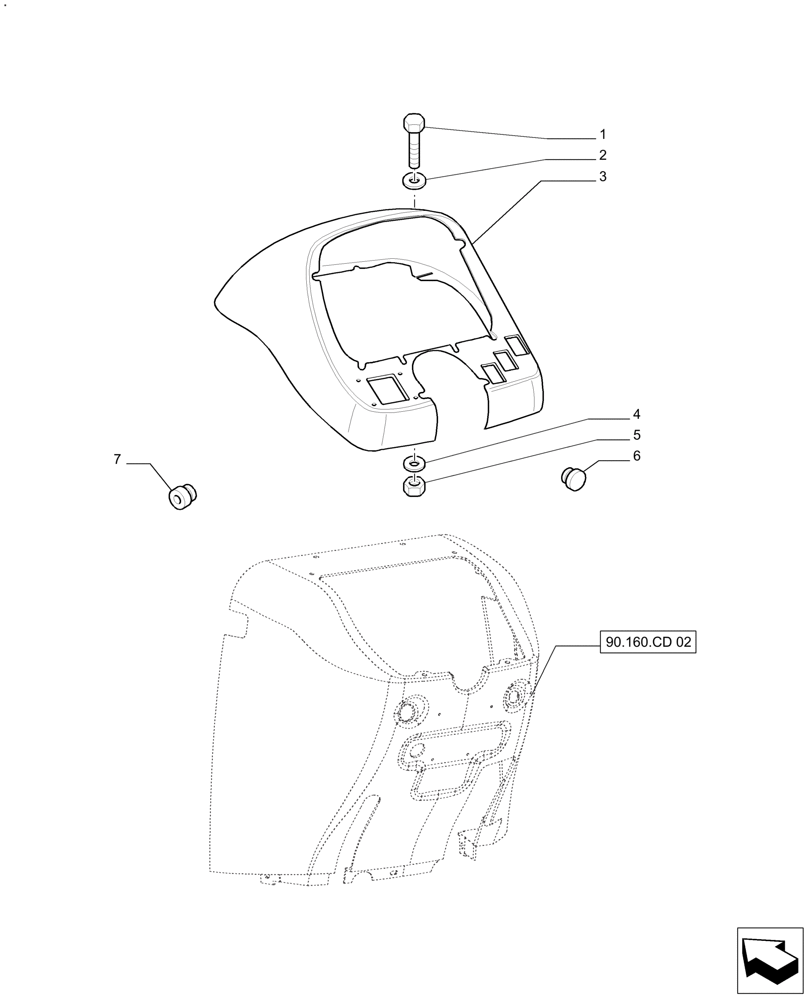

Схема запчастей Case IH FARMALL 110A - (90.160.CD[01]) - TRIM PANEL - FRONT (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
2
3
1
6
4
90.160.cd 02
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

6шт.

2

10519404

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

6шт.

3

84152192

GUARD

W/CAB

1шт.

4

12601279

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, ZND

6шт.

5

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

6шт.

6

5094080

PLUG

D=16,

1шт.

7

5094079

PLUG,Dome Head

D=11,

1шт.
