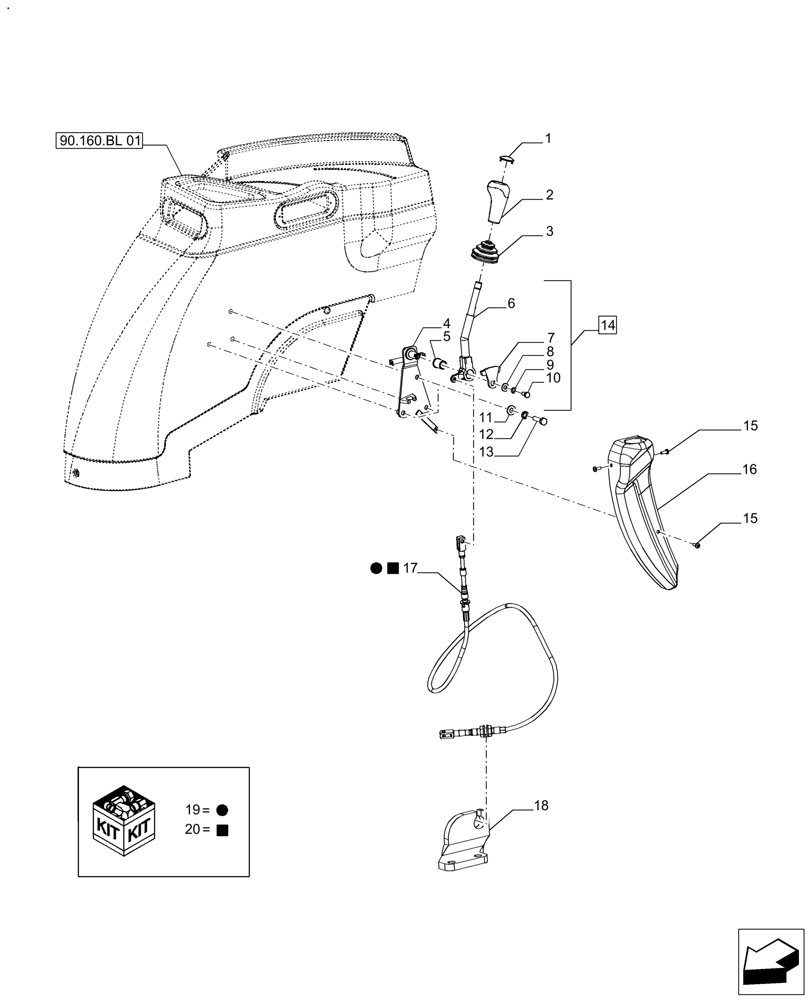

Запчасти Case IH FARMALL 110A (90.160.BL[02]) - LEVER ASSY & KNOB - RANGE TRANSMISSION- W/ CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84210484

SYMBOL

1шт.

2

84210474

KNOB

1шт.

3

84345274

GROMMET

1шт.

4

NSS

NOT SOLD SEPARAT

Support Assy Lever Range, In 14

1шт.

5

84403894

BUSHING,16mm ID x 22.03mm OD x 29.5mm L

Bush

1шт.

6

NSS

NOT SOLD SEPARAT

Lever Range Cab, In 14

1шт.

7

73337363

LOCKING PLATE

Lock Plate

1шт.

8

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

9

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

1шт.

10

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

11

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

3шт.

12

85700672

LOCK WASHER,M10

3шт.

13

43248

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9

3шт.

14

73337736

LEVER

Assy Range Cab, Incl 4 - 10

1шт.

15

81853129

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 4.8, Full Thd

3шт.

16

73337641

COVER

Lever Range Cab

1шт.

17

47764937

CABLE

Clutch Assy

1шт.

18

73338046

SUPPORT

Cable

1шт.

19

48018733

KIT

Cab 2 Remote Valves, Incl 17

1шт.

To See the Full Kit Composition Look Figure 35.204.BL (08)

1шт.

20

48018739

KIT

Cab 4 Remote Valves, Incl 17

1шт.

To See the Full Kit Composition Look Figure 35.204.BL (09)

1шт.
