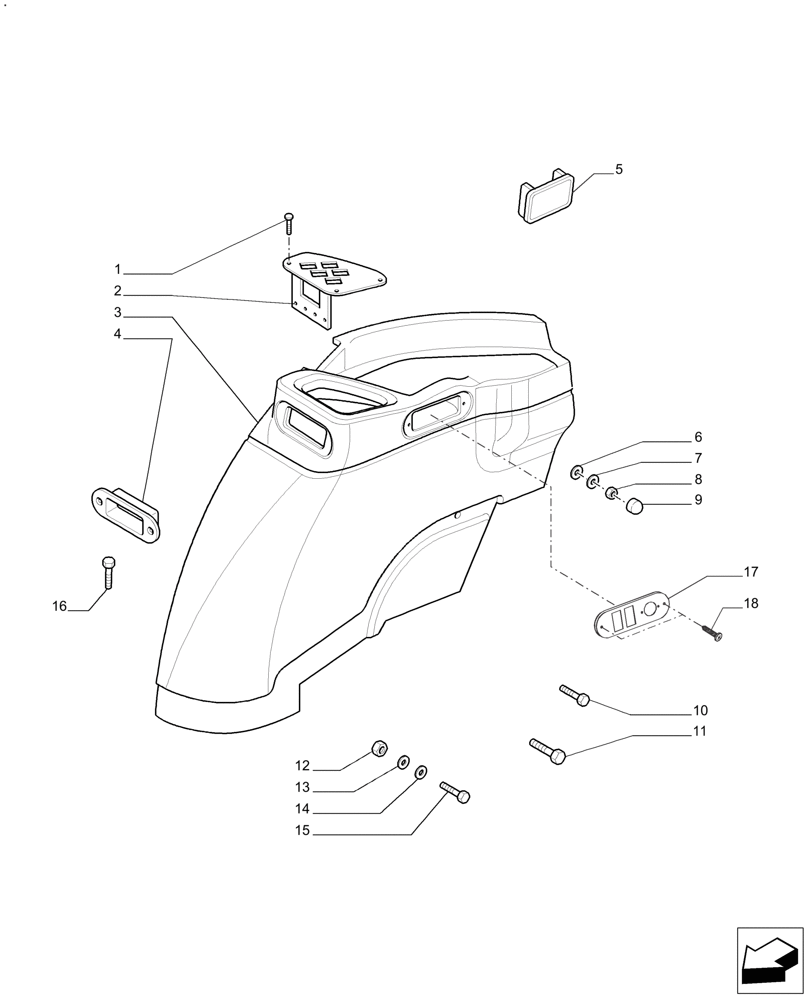

Запчасти Case IH FARMALL 110A (90.160.BL[01]) - LINING - RIGHT - W/CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

86511830

SCREW,Phillips Drive, Pan HD, M6 x 20mm, Cl 4.8

5шт.

2

5097865

SUPPORT

1шт.

3

5097866

LINING

RH

1шт.

4

5097863

SUPPORT

1шт.

5

5166218

PLUG,Switch

2шт.

6

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

7

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

1шт.

8

43362

NUT,M8 x 1.25, Cl 10

1шт.

9

5089481

CAP,17mm OD

1шт.

10

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

11

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

4шт.

12

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

3шт.

13

12644401

WASHER,6.15mm ID x 15mm OD x 1mm Thk

3шт.

14

12601279

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, ZND

3шт.

15

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

16

15931411

SELF-TAP SCREW,Self Tap, Pan, M4 x 1.4 x 25mm

2шт.

17

73337250

COVER

Cover RH

1шт.

18

56009S36

SELF-TAP SCREW,Pan Hd, #8-18 x .62"

2шт.
