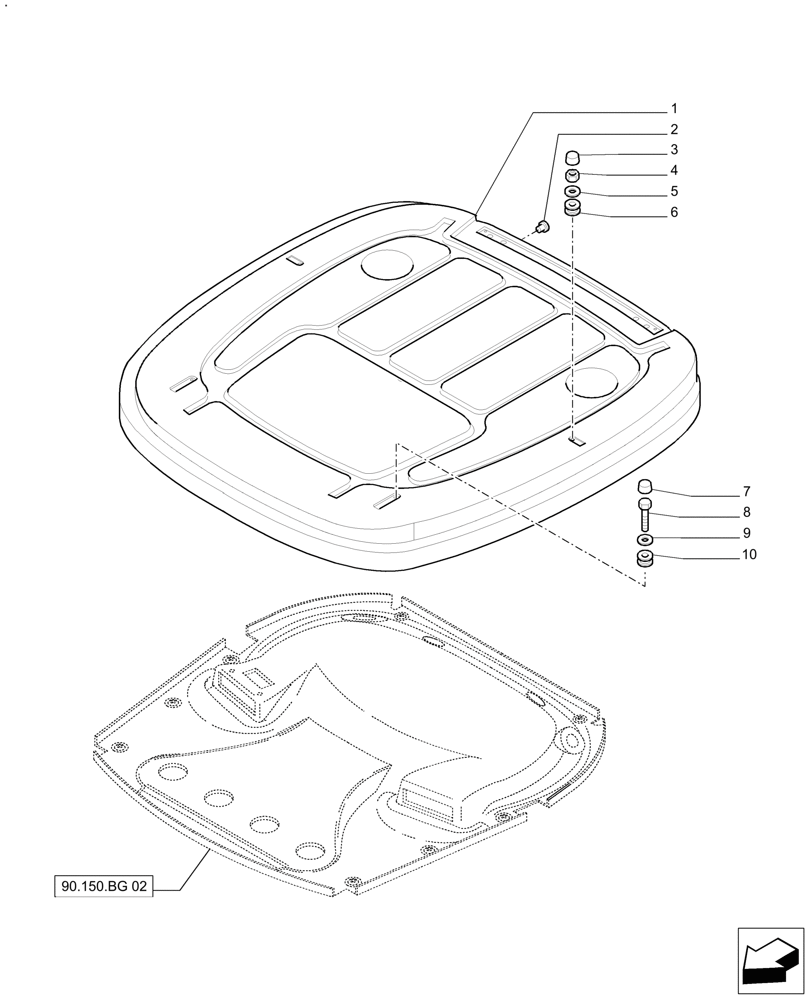

Запчасти Case IH FARMALL 110A (90.150.BG[01]) - CAB ROOF (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

5094378

ROOF

1шт.

2

5094080

PLUG

D=16

4шт.

3

5094207

PLUG

2шт.

4

12574711

NUT,M12 x 1.5, Cl 8

M12 x 1.5, Cl 8

2шт.

4

12577514

THREADED INSERT

NUT, P/T NON-MTL M12X1.75 DIN, Only NAR, Start Year: 16-NOV-12

2шт.

5

5092922

WASHER

2шт.

6

5092921

SEAL

2шт.

7

5089481

CAP,17mm OD

6шт.

8

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

2шт.

9

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

6шт.

10

5094130

SEAL

2шт.
