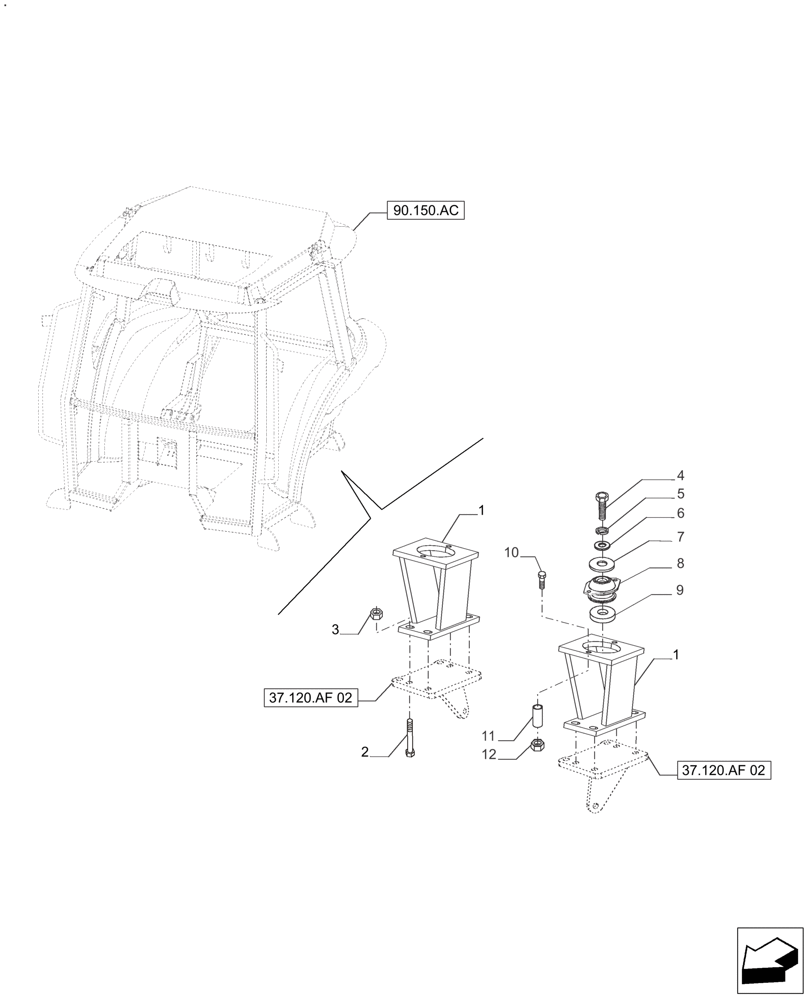

Запчасти Case IH FARMALL 110A (90.150.BB) - CAB SUPPORT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

73337016

SUPPORT

CAB SUPPORT ASSY REAR

2шт.

2

73337208

BOLT

BOLT REAR SUPPORT

8шт.

3

280375

NUT,3/4"-10, GC

8шт.

4

15864324

BOLT,Hex, M16 x 1.5 x 130mm, Cl 8.8

4шт.

5

12601774

WAVE WASHER,17mm ID x 30mm OD x 1.60mm, 6.30mm Max, CST, DAC

Pressure Washer M16

4шт.

6

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

4шт.

7

5092191

SPACER,17mm ID x 90mm OD x 4mm L

4шт.

8

5132016

ISOLATOR

4шт.

9

5092190

SPACER,17mm ID x 90mm OD x 8mm L

4шт.

10

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

4шт.

11

5132014

SPACER,17mm ID x 24mm OD x 57mm L

4шт.

12

12164121

NUT,M16 x 1.5, Cl 10

4шт.
