Запчасти Case IH FARMALL 110A (90.120.AD[04]) - AIR SUSPENSION SEAT W SEAT BELT & OPERATOR PRESENT SWITCH (OPTIONAL W/CAB) (90) - PLATFORM, CAB, BODYWORK AND DECALS

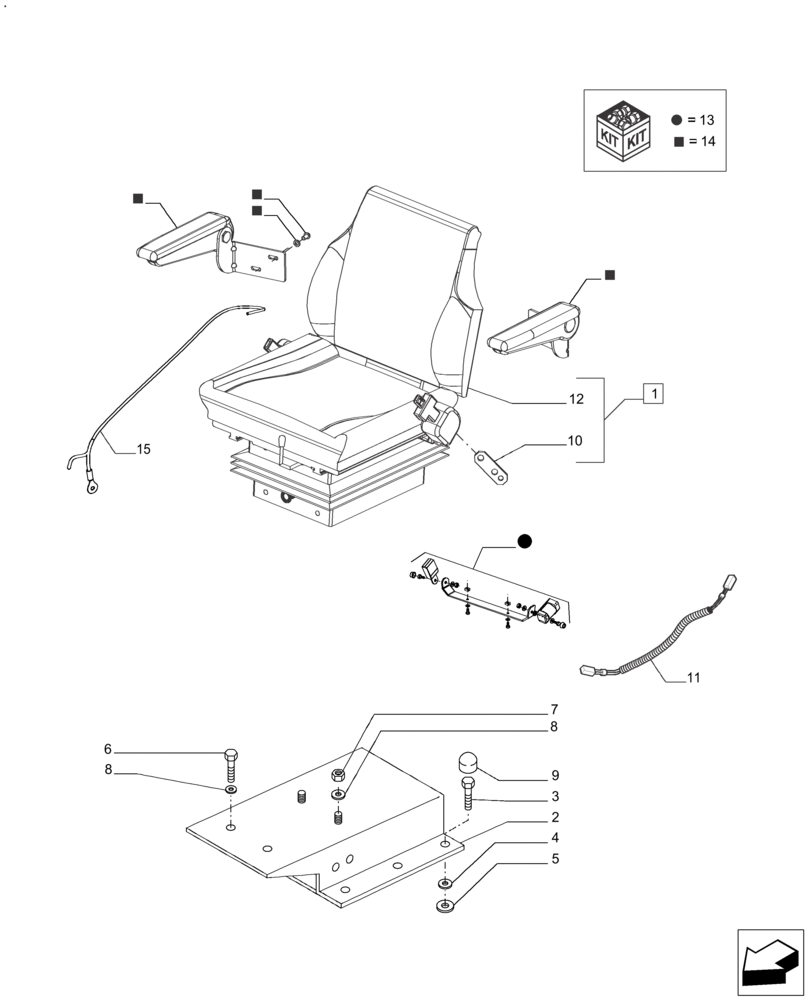

Схема запчастей Case IH FARMALL 110A - (90.120.AD[04]) - AIR SUSPENSION SEAT W SEAT BELT & OPERATOR PRESENT SWITCH (OPTIONAL W/CAB) (90) - PLATFORM, CAB, BODYWORK AND DECALS
14
13
10
7
14
13
6
14
14
13
14
4
8
1
8
3
15
5
12
9
14
2
11

Артикул

Название

Примечание

Количество

1

73338104

SEAT BACK

Seat Assy. Driver PNEU, Incl 10,12

1шт.

2

84273081

SUPPORT

Driver Seat

1шт.

3

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

6шт.

4

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

6шт.

5

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

6шт.

6

15970521

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

7

12164714

NUT,M10 x 1.25, Cl 8

2шт.

8

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

4шт.

9

5089481

CAP,17mm OD

W/CAB

6шт.

10

73337113

LINK

Link Seat Belt

1шт.

11

73338696

WIRE HARNESS

Harness Assy Seat Adapter

1шт.

12

47367151

DRIVER SEAT

1шт.

13

47135573

KIT

Seat Belt

1шт.

14

47127065

KIT

Armrest

1шт.

15

73337563

WIRE HARNESS

HARNESS, WIRE ASSY, AIR SEAT

1шт.

Выбрано товаров: 15
