(90.120.AD[02]) - DELUXE SEAT WITH RETRACTABLE BELTS AND SWITCH - BREAKDOWN

Запчасти Case IH FARMALL 110A (90.120.AD[02]) - DELUXE SEAT WITH RETRACTABLE BELTS AND SWITCH - BREAKDOWN (90) - PLATFORM, CAB, BODYWORK AND DECALS

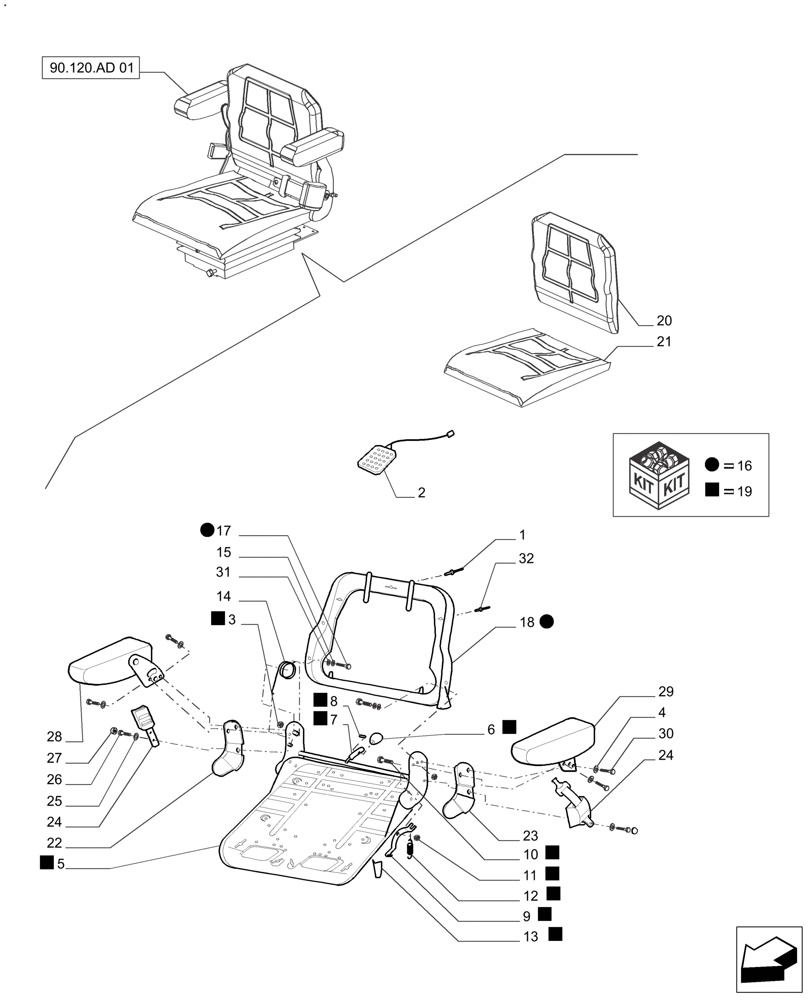

Схема запчастей Case IH FARMALL 110A - (90.120.AD[02]) - DELUXE SEAT WITH RETRACTABLE BELTS AND SWITCH - BREAKDOWN (90) - PLATFORM, CAB, BODYWORK AND DECALS
19
26
13
25
23
31
24
12
27
19
14
1
19
7
3
19
16
19
32
9
15
19
10
6
19
16
20
22
11
28
30
18
24
19
29
19
90.120.ad 01
19
2
8
16
5
16
4
19
21
17
19
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5094346

RIVET,3.5mm OD x 14mm L

15шт.

2

5080892

SWITCH ASSY

1шт.

3

5080237

NUT

4шт.

4

5080248

SPRING WASHER

12шт.

5

5080277

PLATE

1шт.

6

84424319

GEAR

1шт.

7

5080252

PIN

1шт.

8

5080253

PIN

1шт.

9

5080254

LEVER

1шт.

10

5080255

BOLT

1шт.

11

5080256

NUT

2шт.

12

5080257

SPRING

1шт.

13

5080258

KNOB

1шт.

14

5080259

SPRING

1шт.

15

5080260

WASHER

2шт.

16

5083205

SEAT BACK

KIT, Incl 17 - 18

1шт.

17

5080262

BOLT

2шт.

18

5080263

PLATE

1шт.

19

5080362

REPAIR KIT

Incl 5 - 13

1шт.

20

84264813

SEAT BACK

1шт.

21

84424300

SEAT CUSHION

Seat Cushion Assy (Switch)

1шт.

22

5080267

COVER

RH

1шт.

23

5080268

COVER

LH

1шт.

24

5080851

SAFETY BELT

1шт.

25

5080248

SPRING WASHER

4шт.

26

5080270

SCREW,7/16 UNF x 25mm

2шт.

27

5080271

COVER,17.5mm ID

2шт.

28

5080272

ARMREST

RH

1шт.

29

5080273

ARMREST

LH

1шт.

30

5080274

BOLT

4шт.

31

5080261

WASHER

2шт.

32

5080264

PLUG

4шт.
